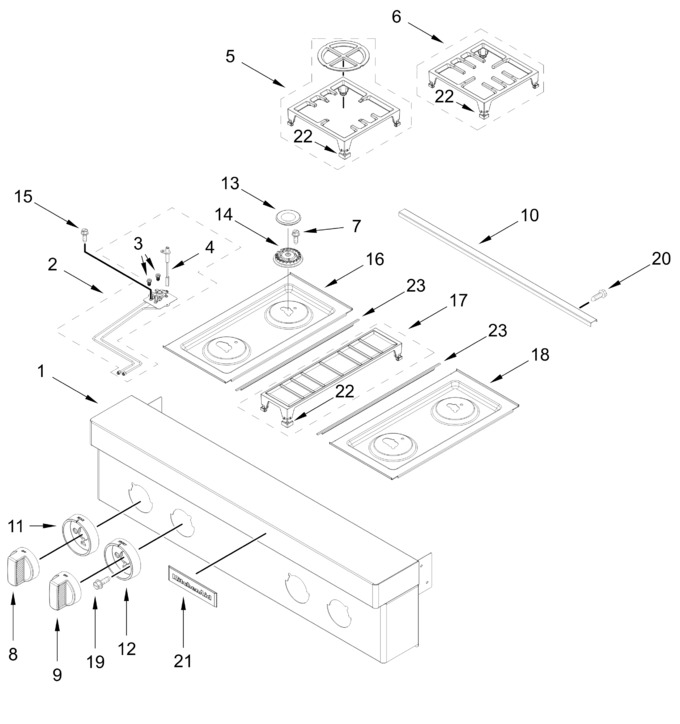

Burner Box Parts
Cooktop And Burner Parts
Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11795688 | Console Panel Assembly (Replaces: W11700781) |
|
- | |||||
| 2 | W11337062 | Orifice Holder Assembly (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11580024 | Igniter (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11380124 | Burner, Grate (with Wok Ring) (Replaces: W11291183) |
|
Immediately | $ 200.19 | ||||
| 6 | W11380128 | Burner, Grate (Replaces: W11291179) |
|
Immediately | $ 183.04 | ||||
| 7 | W11643628 | Screw (Replaces: W11323261) |
|
$ 14.75 | |||||
| 8 | W11785264 | Knob, Single (stainless) (Replaces: W11560138) |
|
- | |||||
| 9 | W11785263 | Knob, Dual (stainless) (Replaces: W11560140) |
|
- | |||||
| 10 | W11355759 | Trim, Island |
|
$ 244.78 | |||||
| 11 | W11380145 | Bezel (rear Burners) (Replaces: W10883433) |
|
$ 65.07 | |||||
| 12 | W11380146 | Bezel (front Burners) (Replaces: W10881642) |
|
$ 65.07 | |||||
| 13 | W11380174 | Cap, Burner (black, Set Of 4) (Replaces: W11121389) |
|
Immediately | $ 139.20 | ||||
| 14 | W11344539 | Spreader, Flame (Replaces: W10891746) |
|
Immediately | $ 141.16 | ||||
| 15 | 7101P42660 | Screw |
|
- | |||||
| 16 | W11344755 | Panel, Left Cooktop (black) (Replaces: W11038235) |
|
$ 199.76 | |||||
| 17 | W11380566 | Kit, Grate Filler (Replaces: W11291178) |
|
$ 257.46 | |||||
| 18 | W11380180 | Panel, Right Cooktop (black) (Replaces: W11038245) |
|
$ 491.89 | |||||
| 19 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| 20 | 7101P33860 | Screw |
|
- | |||||
| 21 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 22 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 23 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| W11672510 | Orifice, Main (15k) (Replaces: W10892419) |
|
Immediately | $ 107.87 | |||||
| W11381273 | Orifice Holder Assembly (Replaces: W10892767) |
|
Immediately | $ 123.40 | |||||
| W10892438 | Orifice, Simmer (5k) |
|
$ 99.86 | ||||||
| W11661909 | Orifice, Simmer (2.6k) (Replaces: W10892435) |
|
Immediately | $ 74.14 | |||||
| W11344742 | Spreader, Flame (Replaces: W10891974) |
|
Immediately | $ 134.12 | |||||
| W11378585 | Orifice Holder Assembly (Replaces: W10892484) |
|
$ 123.22 | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11678580 | Screw (Replaces: W11323309) |
|
$ 14.78 | ||||||
| W11628654 | Igniter (Replaces: W10892340) |
|
Immediately | $ 54.92 | |||||
| W11344746 | Spreader, Flame (Replaces: W10891978) |
|
Immediately | $ 133.20 |
