Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11444077 Panel, Cooktop   (Replaces: W10878253) Special Order $ 940.19

2 W11333305 Orifice Holder Assembly   (Replaces: W10892793) Special Order $ 125.39

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11573760 Igniter   (Replaces: W11238757) In-Stock Immediately $ 23.48

5 W11515370 Grate Assembly (black, Set Of 2)   (Replaces: W11291176) Special Order $ 394.33

6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

7 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 12.72

8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11492283 Interface, User   (Replaces: W11436327) In-Stock Immediately $ 573.94

10 W11320411 Cover, Wifi Outer   (Replaces: W11205795) Appelez-nous -
11 W11316873 Bezel (brass)   (Replaces: W11090283) In-Stock Immediately $ 49.29

12 W11234290 Wifi Module Assembly   (Replaces: W11110768) Special Order $ 179.89

13 W11328971 Cap, Burner (black, Set Of 4)   (Replaces: W11121391) Special Order $ 173.40

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 250.69

15 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

16 W11574370 Knob, Oven Mode (stainless)   (Replaces: W11496094) Special Order $ 93.11

17 7101P62460 Screw Appelez-nous -
18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 502.01

19 W11333312 Panel, Right Cooktop   (Replaces: W11038253) Special Order $ 475.25

20 W10323250 Insert, Island Trim Special Order $ 181.79

21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11620693 Knob, Griddle (stainless)   (Replaces: W11496089) Appelez-nous -
24 W11785279 Knob, Burner (stainless)   (Replaces: W11560125) Special Order $ 52.49

25 ARI4865CFF8563D5F77A3C528079CFC39A7 Griddle Module Assembly (part Number Shown On Burner Box And Griddle Parts Page) Appelez-nous -
26 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

27 W11317499 Bezel, Oven (stainless)   (Replaces: W10914998) Special Order $ 28.02

28 W11574369 Knob, Oven Temperature (stainless)   (Replaces: W11496091) Special Order $ 118.01

29 W11320410 Cover, Wifi Inner   (Replaces: W11205794) Appelez-nous -
30 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 356.52

31 W10116114 Light, Indicator Housing In-Stock Immediately $ 93.57

32 W10291193 Trim, L-strip Appelez-nous -
33 7101P42660 Screw Appelez-nous -
34 W10294500 Lens, Indicator Light Special Order $ 7.69

35 WP3400814 Screw   (Replaces: 3400814) Special Order $ 4.62

36 W11319196 Button Assembly, Oven Start   (Replaces: W11090650) Special Order $ 23.67

37 W11476245 Trim, Island Special Order $ 404.65

38 W11318857 Button Assembly, Oven Light   (Replaces: W11090651) Special Order $ 23.81

39 W11318856 Light Pipe Assembly   (Replaces: W10896369) Special Order $ 109.35

40 W11318855 Antenna, Wifi   (Replaces: W11130078) Special Order $ 228.92

41 W11317495 Bezel, Griddle (brass)   (Replaces: W11104966) Special Order $ 55.28

42 W11620692 Manager, Powermax Appliance   (Replaces: W11543348) In-Stock Immediately $ 472.57

43 7101P30960 Screw Appelez-nous -
44 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

45 W10674068 Screw Special Order $ 24.39

46 3196265 Screw   (Replaces: 3400099) Appelez-nous -
W11238756 Igniter In-Stock Immediately $ 67.96

ARI58AF8D252016DDED824FB66FD9161A41 (for 4 Cooktop Burners) Appelez-nous -
W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 229.46

W10130759 Bracket, Moving Console (right) Special Order $ 75.94

W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

ARI68146C2FADA8E1AE3122F181AC9275E2 (left Front, Right Front) Appelez-nous -
ARIA12C7E5D311C54B1AACBC1820DF34957 (right Front) Appelez-nous -
ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
ARI8EE4F5E59D536F62986D20F6E6C7927B (left Front, Left Rear, Right Front) Appelez-nous -
ARI3CCC6EF4AF791FA50D2D2DAAC8BCDBD4 (for 2 Oven Knobs) Appelez-nous -
W11620688 Orifice Holder Assembly   (Replaces: W11505833) Appelez-nous -
W11333309 Orifice Holder Assembly   (Replaces: W10892730) Special Order $ 122.96

W10892440 Orifice, Main (7.2k) Special Order $ 99.86

W11333306 Orifice Holder Assembly   (Replaces: W10892494) In-Stock Immediately $ 127.98

W10892418 Orifice, Main (15.4k) In-Stock Immediately $ 103.03

W10892429 Orifice, Simmer (2.0k) Special Order $ 99.86


    View Diagram in Separate Window     Print Icon   Print Part List

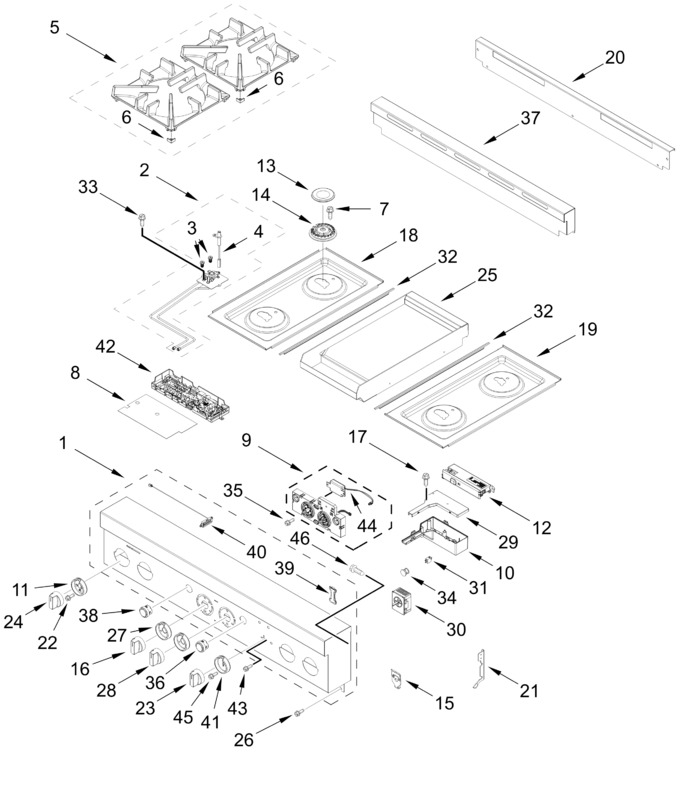

Diagram for JGRP536HL07
