SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

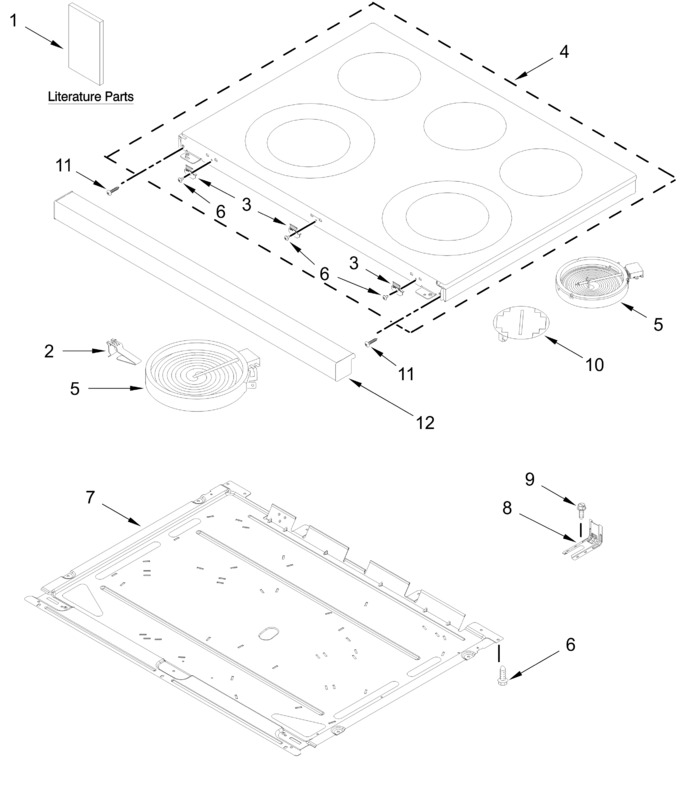

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 11.52
4	W11730413		Cooktop (black, Includes, Cooktop Bracket)   (Replaces: W11633197)		Appelez-nous	-
5	W11517959		Element, (dual 3000w)   (Replaces: W11282542)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
11	W11684512		Screw   (Replaces: 3400080)				$ 14.81
12	W11729922		Bullnose (black)   (Replaces: W11624926)				$ 262.16
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11784064		Main Harness   (Replaces: W11765579)		Appelez-nous	-
	W11737120		Harness, Cooktop   (Replaces: W11706379)				$ 151.32
	W11640146		Owner's Manual		Appelez-nous	-
	W11639165		Tech Sheet		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11638796		Quick Start Guide		Appelez-nous	-
	W11171119		Element (1200w)   (Replaces: W10248261)			Immediately	$ 182.23
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear, Right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
