Basket And Tub Parts


Console And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

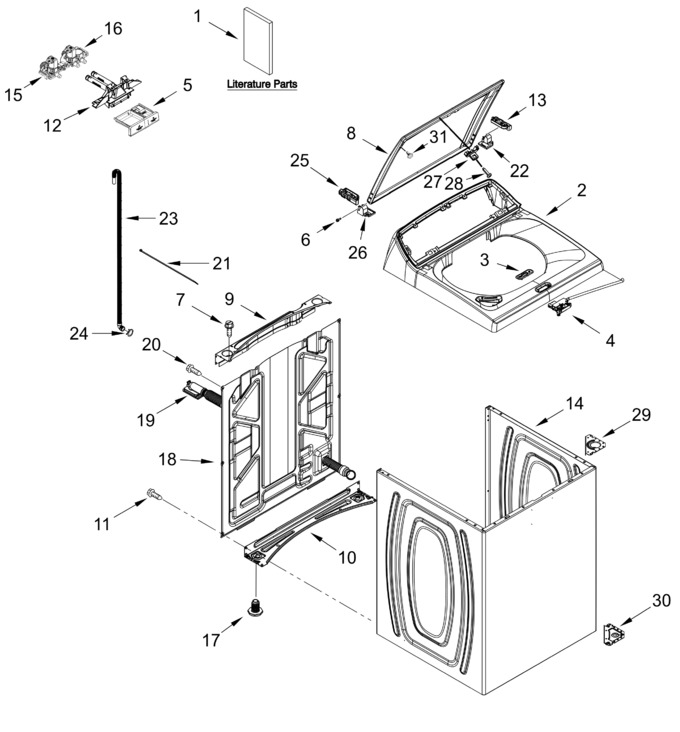

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11814980		Top (white)   (Replaces: W11783782)		Appelez-nous	-
3	W11545554		Lid Lock Bezel (white)   (Replaces: W11215078)			Immediately	$ 22.30
4	W11814993		Lid Lock, Solenoid   (Replaces: W11543567)				$ 100.82
5	W11814985		Drawer, Dispenser   (Replaces: W11688854)				$ 56.62
6	W10847999		Screw   (Replaces: W10804977)				$ 13.47
7	W11685943		Screw   (Replaces: W10660565)				$ 14.97
8	W11814987		Lid, Steel Finish   (Replaces: W11241163)				$ 274.51
9	W11814975		Channel, Top Rear   (Replaces: W10515799)		Appelez-nous	-
10	W11814974		Channel, Bottom Rear   (Replaces: W10515817)		Appelez-nous	-
11	W11685943		Screw   (Replaces: W10660565)				$ 14.97
12	W11814982		Dispenser, Housing Assembly   (Replaces: W11554925)		Appelez-nous	-
13	W11814990		Hinge, Bracket (right)   (Replaces: W11611834)		Appelez-nous	-
14	W10516852		Cabinet (white)				$ 379.82
15	W11814983		Valve, Water (hot)   (Replaces: W11480875)				$ 114.00
16	W11814984		Valve, Water (cold)   (Replaces: W11480872)				$ 114.00
17	W11213957		Foot Assembly, Leveling   (Replaces: W11179235)			Immediately	$ 14.24
18	W11814976		Rear Panel   (Replaces: W11266056)		Appelez-nous	-
19	W10899966		Hose, Inner Drain Assembly   (Replaces: W10763078)			Immediately	$ 35.78
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
21	W11814995		Tie, Cable   (Replaces: W10620399)		Appelez-nous	-
22	W11814991		Hinge, Post (right)   (Replaces: W11632579)		Appelez-nous	-
23	W11814994		Assembly, Outer Drain Hose   (Replaces: W11787054)		Appelez-nous	-
24	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
25	W11814989		Hinge, Bracket (left)   (Replaces: W11611833)		Appelez-nous	-
26	W11814992		Hinge, Post (left)   (Replaces: W11632580)		Appelez-nous	-
27	W11814986		Strike Assembly   (Replaces: W11091026)			Immediately	$ 12.34
28	W11814988		Screw. Strike   (Replaces: W11346192)		Appelez-nous	-
29	W11815004		Gusset, Top Front   (Replaces: W10515782)		Appelez-nous	-
30	W11815005		Gusset, Botton Front   (Replaces: W10515815)		Appelez-nous	-
31	8572266		Bumper, Door			Immediately	$ 11.73
	W11646252		Owners Manual		Appelez-nous	-
	W11779887		Energy Guide		Appelez-nous	-
	W11779876		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
