SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:

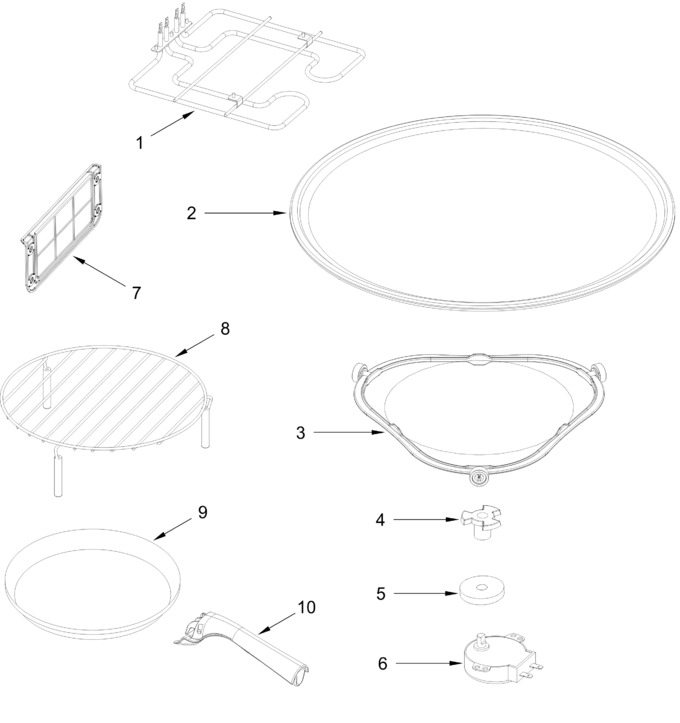

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268380 | Element, Grill |
|
- | |||||
| 2 | W11367904 | Turntable, Glass (Replaces: W11335034) |
|
Immediately | $ 72.89 | ||||
| 3 | W11252182 | Ring, Turntable (includes Rollers) (Replaces: W11193600) |
|
Immediately | $ 39.55 | ||||
| 4 | W11319884 | Driver, Turntable |
|
$ 16.78 | |||||
| 5 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 6 | W10642989 | Motor, Turntable |
|
Immediately | $ 199.95 | ||||
| 7 | W11268343 | Cover, Waveguide |
|
$ 74.83 | |||||
| 8 | W11319860 | Rack, Grill |
|
- | |||||
| 9 | W11319862 | Plate, Crisp |
|
- | |||||
| 10 | W10851464 | Handle, Crisp Plate (Replaces: W10807961) |
|
$ 26.07 |
