New Model Search:

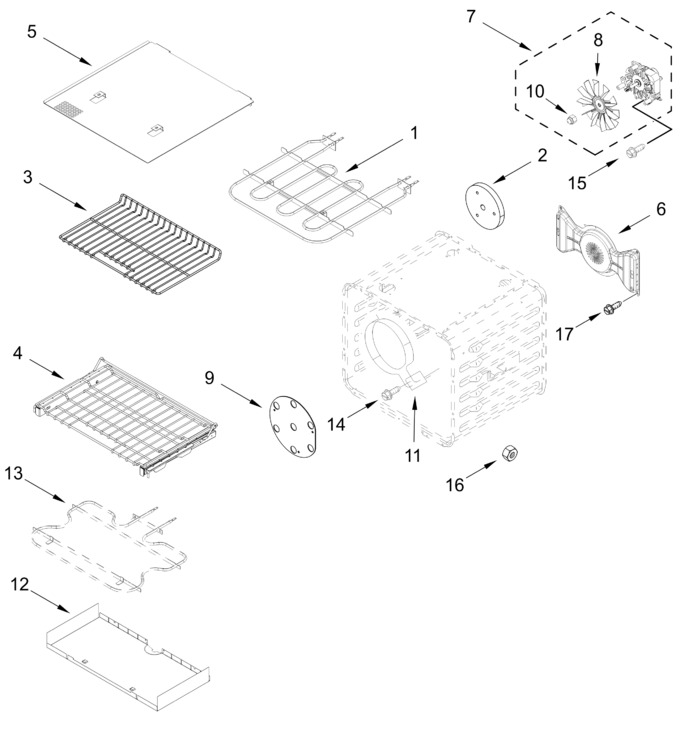

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10115994 | Element, Broil |
|
$ 299.72 | |||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 27.10 | ||||
| 3 | W11550107 | Rack, Oven (Replaces: W10570887) |
|
$ 117.11 | |||||
| 4 | W11496977 | Rack, Sliding Oven |
|
$ 452.64 | |||||
| 5 | W10160856 | Shield, Element Broil |
|
- | |||||
| 6 | W11662207 | Baffle, Convection (Replaces: W11212180) |
|
$ 173.23 | |||||
| 7 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 176.41 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 9 | W10261523 | Plate, Fan |
|
$ 77.85 | |||||
| 10 | W10794042 | Nut, Acorn (left Hand Thread) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 11 | W11643125 | Element, Convection Steam (Replaces: 9762242) |
|
Immediately | $ 126.84 | ||||
| 12 | W11320540 | Tray, Hidden Bake (Replaces: W11109421) |
|
- | |||||
| 13 | ARIF93179EB3F6CD1D1805E65CA61F82AAB | Element, Hidden Bake (not Serviced) |
|
- | |||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 15 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 | |||||
| 16 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | W10739592 | Screw |
|
- |
