SELECT A DIAGRAM

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts

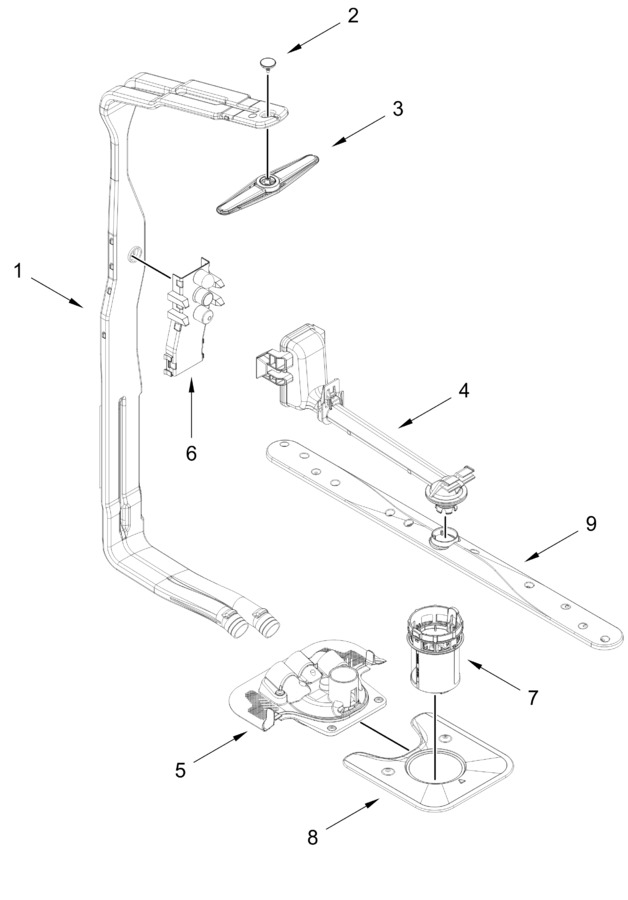

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11775237		Feed Tube Assembly   (Replaces: W11507999)				$ 106.35
2	W11590538		Retainer   (Replaces: W11039888)			Immediately	$ 20.42
3	W11573766		Sprayarm, Third Level   (Replaces: W11039869)			Immediately	$ 24.03
4	W11662109		Manifold   (Replaces: W11043452)			Immediately	$ 26.44
5	W11743983		Cover, Diverter   (Replaces: W11128231)				$ 29.73
6	W11690647		Retainer, Docking (2nd Level)   (Replaces: W10892836)			Immediately	$ 15.44
7	W11460958		Filter   (Replaces: W10891533)				$ 68.23
8	W11590541		Screen   (Replaces: W10891539)				$ 27.88
9	W11627525		Sprayarm, Upper   (Replaces: W11043437)			Immediately	$ 24.41

    View Diagram in Separate Window       Print Part List
