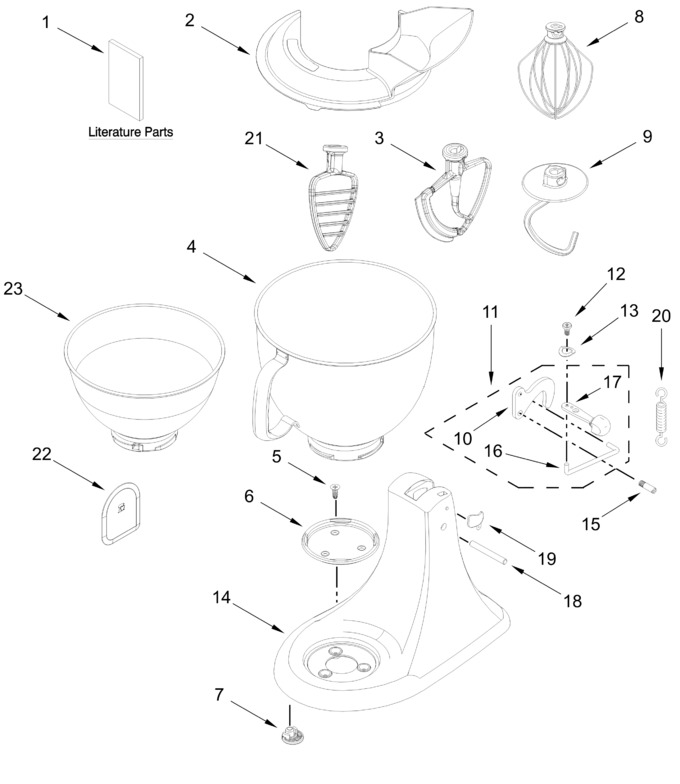

Base And Pedestal Unit Parts


Case, Gearing And Planetary Unit Parts


Color Variation Parts


Motor And Control Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11573560		Shield, Pouring   (Replaces: W11385618)				$ 40.76
3	W11606664		Beater, Wiping (silent Silver)   (Replaces: W11555365)		Appelez-nous	-
4	W11305077		Bowl, 5 Qt.   (Replaces: W11203341)		Appelez-nous	-
5	W11544572		Screw   (Replaces: 3400020)				$ 8.41
6	WPW10191926		Cap, Bowl Screw   (Replaces: W10191926)			Immediately	$ 19.03
7	W11736697		Foot   (Replaces: W11626982)		Appelez-nous	-
8	WP9704329		Whip, Wire   (Replaces: 9704329)			Immediately	$ 29.90
9	W11606668		Hook, Dough (silent Silver)   (Replaces: W11555367)		Appelez-nous	-
10	W11246352		Latch   (Replaces: 9709055)				$ 8.57
11	W11416057		Latch, Link Assembly (chrome)   (Replaces: W10471368)		Appelez-nous	-
12	6011-006971		Screw   (Replaces: 110679)			Immediately	$ 3.59
13	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
14	ARI78E3EA5DE827665772CF38F1975F320A		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
15	W10802060		Screw   (Replaces: W10572158)				$ 5.21
16	W11232016		Link, Latch   (Replaces: 24450)				$ 7.83
17	W11676543		Lever, Latch (chrome)   (Replaces: W10471367)		Appelez-nous	-
18	WP16910		Pin, Hinge   (Replaces: 16910)			Immediately	$ 4.87
19	WP3184264		Headlock, Snap (black)   (Replaces: 3184264)				$ 8.20
20	W11188450		Spring, Lock Lever   (Replaces: W10509949)		Appelez-nous	-
21	W11748394		Beater, Pastry (silent Silver)   (Replaces: W11555366)		Appelez-nous	-
22	W11623644		Scraper, Pot (nylon)   (Replaces: W11550306)		Appelez-nous	-
23	W11681930		Bowl (3 Qt)   (Replaces: W10713675)		Appelez-nous	-
	W11603398		Use & Care Guide		Appelez-nous	-
