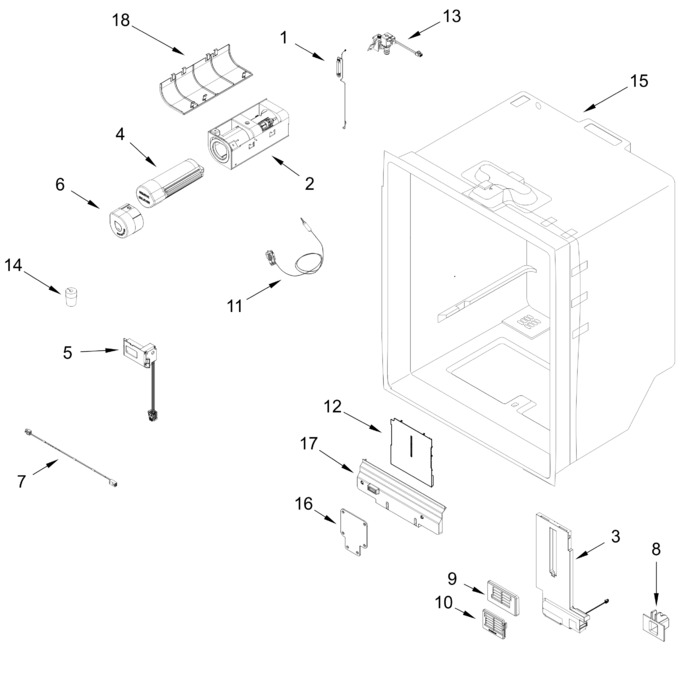

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11786864		Water Reservoir   (Replaces: W11556227)				$ 139.14
2	W11787800		Filter Housing Assembly   (Replaces: W11611400)		Appelez-nous	-
3	W11786887		Tower Cover   (Replaces: W11589849)				$ 441.95
4	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
5	W11787784		Damper Assembly   (Replaces: W11509880)		Appelez-nous	-
6	W11759994		Water Filter Housing Plug   (Replaces: W11669931)				$ 12.77
7	W11787131		Pantry Jumper Assembly   (Replaces: W11717382)		Appelez-nous	-
8	W11786920		Eps Holder   (Replaces: W11733721)		Appelez-nous	-
9	W11786940		Air Return Duct Grille   (Replaces: W11608374)		Appelez-nous	-
10	W11787802		Air Return Grille   (Replaces: W11615361)		Appelez-nous	-
11	W11787118		Wire Jumper Assembly   (Replaces: W11669736)		Appelez-nous	-
12	W11787780		False Wall   (Replaces: W11608354)		Appelez-nous	-
13	W11787124		Retainer Bracket   (Replaces: W11684787)		Appelez-nous	-
14	W11807693		Dispenser Seal   (Replaces: W11728424)		Appelez-nous	-
15	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
16	W11787791		Port Lid Assembly   (Replaces: W11724694)		Appelez-nous	-
17	W11787778		Lower False Wall   (Replaces: W11608360)		Appelez-nous	-
18	W11759993		Water Filter Housing Cover (lower)   (Replaces: W11611401)				$ 81.11
