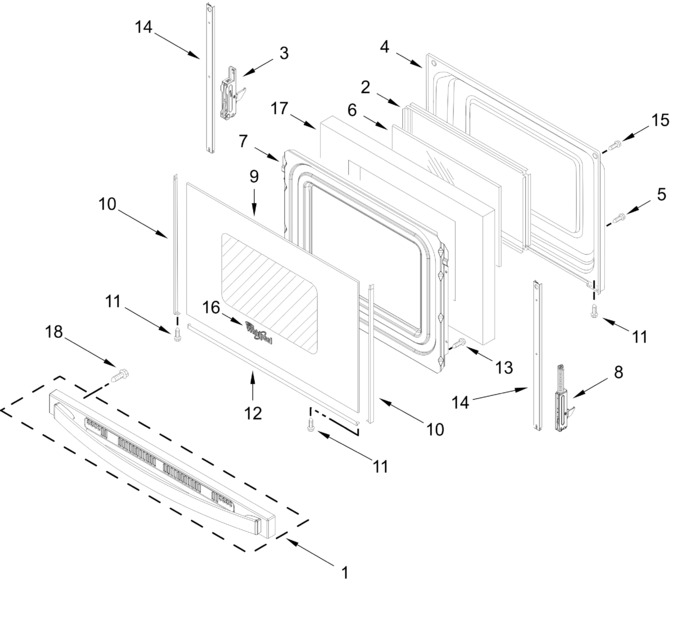

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11717708		Handle And Vent Assembly (stainless)   (Replaces: W11097771)		Appelez-nous	-
2	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
3	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 232.06
7	W11809823		Retainer, Insulation   (Replaces: W11788182)		Appelez-nous	-
8	WPW10299224		Hinge, Active (with Spring)   (Replaces: W10299224)			Immediately	$ 73.49
9	W11702167		Door Glass, Assembly (black)   (Replaces: W11687920)			Immediately	$ 184.73
10	W10761018		Trim, Door Side (black, Left)   (Replaces: W10746436)			Immediately	$ 54.80
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	W11569689		Trim, Bottom Door (black)   (Replaces: W11444043)			Immediately	$ 60.08
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
16	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
17	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
18	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
	W10761014		Trim, Door Side (black, Right)   (Replaces: W10746435)			Immediately	$ 72.96
