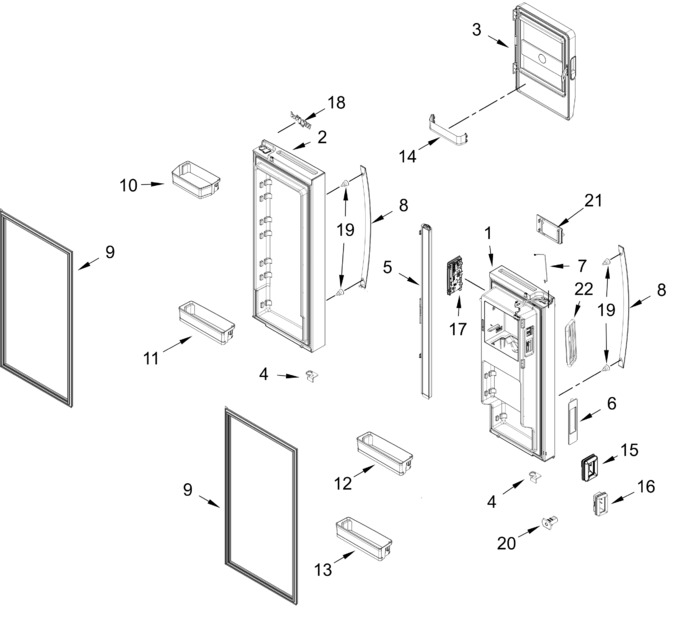

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11806040		Left Door Assembly (black Stainless)   (Replaces: W11672036)		Appelez-nous	-
2	W11796980		Right Door Assembly (black Stainless)   (Replaces: W11672797)		Appelez-nous	-
3	W11787138		Ice Door Assembly   (Replaces: W11567178)		Appelez-nous	-
4	W11787142		Door Stopper (black, Left Hand)   (Replaces: W11681260)		Appelez-nous	-
5	W11795513		Mullion Assembly   (Replaces: W11624648)		Appelez-nous	-
6	W11787152		Door Duct Retainer   (Replaces: W11685003)		Appelez-nous	-
7	W11787153		Dispenser Water Tube   (Replaces: W11576674)		Appelez-nous	-
8	W11450223		Handle Assembly (black Stainless)   (Replaces: W11289639)			Immediately	$ 188.98
9	W11816123		Refrigerator Door Gasket (grey)   (Replaces: W11586645)				$ 223.35
10	W11787174		Gallon Bin   (Replaces: W11695930)		Appelez-nous	-
11	W11787154		Bottom Bin (right Hand)   (Replaces: W11692521)		Appelez-nous	-
12	W11787155		Dispenser Bin (left Hand)   (Replaces: W11692527)		Appelez-nous	-
13	W11787156		Bottom Bin (left Hand)   (Replaces: W11692526)		Appelez-nous	-
14	W11787165		Trivet Bin   (Replaces: W11692531)		Appelez-nous	-
15	W11787853		Door Supply Duct Assembly   (Replaces: W11740632)		Appelez-nous	-
16	W11787790		Return Duct Assembly   (Replaces: W11740633)		Appelez-nous	-
17	W11798514		Ui Assembly   (Replaces: W11559100)		Appelez-nous	-
18	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
19	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
20	W11787121		Retainer Plug   (Replaces: W11719970)		Appelez-nous	-
21	W11787124		Retainer Bracket   (Replaces: W11684787)		Appelez-nous	-
22	W11818599		Supply Gasket   (Replaces: W11611713)		Appelez-nous	-
