Cabinet Parts


Dispenser Front Parts


Freezer Door Parts


Freezer Liner Parts


Icemaker And Ice Container Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

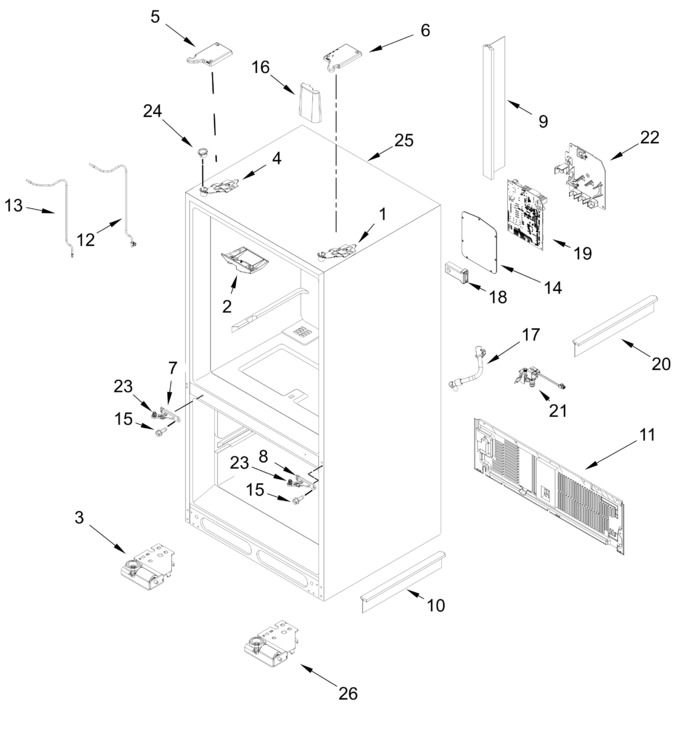

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11786665		Top Hinge Assembly (right Hand)   (Replaces: W11354191)		Appelez-nous	-
2	W11785606		Pivot Block   (Replaces: W11565664)		Appelez-nous	-
3	W11791081		Roller Bracket Assembly (left Hand)   (Replaces: W11561088)				$ 80.20
4	W11791043		Top Hinge Assembly (left Hand)   (Replaces: W11342589)		Appelez-nous	-
5	W11807675		Hinge Cover Assembly (left Hand)   (Replaces: W11635010)		Appelez-nous	-
6	W11838664		Hinge Cover Assembly (right Hand)   (Replaces: W11739714)		Appelez-nous	-
7	W11786846		Hinge Center Assembly (left Hand)   (Replaces: W11553339)				$ 93.33
8	W11786849		Hinge Center Assembly (right Hand)   (Replaces: W11554905)		Appelez-nous	-
9	W11785608		Air Separator Assembly   (Replaces: W11681218)		Appelez-nous	-
10	W11785609		Air Separator Assembly (bottom)   (Replaces: W11681219)		Appelez-nous	-
11	W11785611		Unit Cover Assembly   (Replaces: W11673278)		Appelez-nous	-
12	W11785622		Cabinet Water Fill Tube   (Replaces: W11576663)		Appelez-nous	-
13	W11785623		Water Dispenser Tube   (Replaces: W11576656)		Appelez-nous	-
14	W11785633		Lid Hv Assembly   (Replaces: W11701312)		Appelez-nous	-
15	W11819838		Screw   (Replaces: W11729359)		Appelez-nous	-
16	W11795510		Inlet Tube   (Replaces: W11618006)		Appelez-nous	-
17	W11785640		Filter Outlet Tube   (Replaces: W11576739)				$ 91.27
18	W11785696		Reed Switch Holder   (Replaces: W11658592)		Appelez-nous	-
19	W11815971		Control Board				$ 405.10
20	W11790663		Air Bottom Separator   (Replaces: W11676389)		Appelez-nous	-
21	W11758895		Single Water Valve   (Replaces: W11454773)			Immediately	$ 102.89
22	W11790671		Triple Valve Bracket   (Replaces: W11541794)		Appelez-nous	-
23	WPW10505294		Door Coupler   (Replaces: W10505294)				$ 11.90
24	W10705239		Door Retainer			Immediately	$ 51.64
25	ARI2948F547D7C4C1B6CA0878B04EDFC4EF		Cabinet (not A Servicable Part)		Appelez-nous	-
26	W11791174		Roller Bracket Assembly (right Hand)   (Replaces: W11561087)				$ 80.20

    View Diagram in Separate Window       Print Part List
