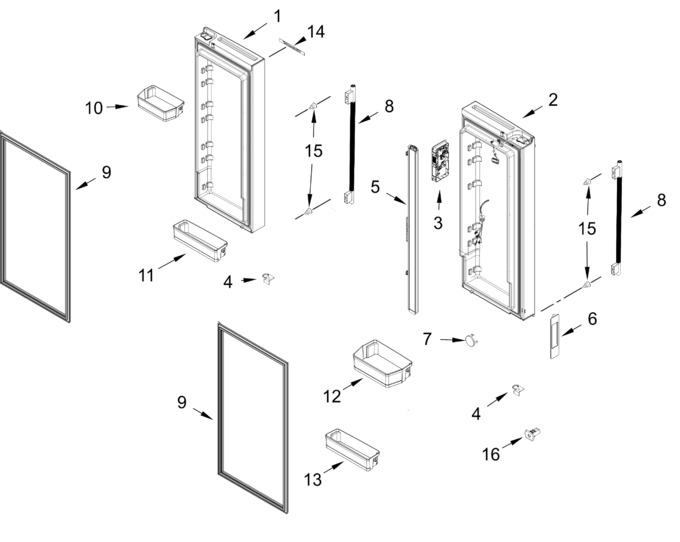

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11796975		Right Door Assembly (juniper, Includes Door Gasket)   (Replaces: W11690372)				$ 598.85
2	W11796984		Left Door Assembly (juniper)   (Replaces: W11690374)		Appelez-nous	-
3	W11791179		Temperature Ui Assembly   (Replaces: W11550269)				$ 285.71
4	W11787142		Door Stopper (black, Left Hand)   (Replaces: W11681260)		Appelez-nous	-
5	W11794061		Mullion Assembly   (Replaces: W11624284)		Appelez-nous	-
6	W11787152		Door Duct Retainer   (Replaces: W11685003)		Appelez-nous	-
7	W11791178		Cover Screw   (Replaces: W11589852)		Appelez-nous	-
8	W11794190		Handle Assembly (juniper)   (Replaces: W11682896)				$ 271.05
9	W11816123		Refrigerator Door Gasket (grey)   (Replaces: W11586645)				$ 223.35
10	W11791181		Gallon Bin (right Hand)   (Replaces: W11657108)				$ 58.46
11	W11791199		Bottom Bin (right Hand)   (Replaces: W11657111)		Appelez-nous	-
12	W11791212		Gallon Bin (left Hand)   (Replaces: W11657107)		Appelez-nous	-
13	W11791206		Bottom Bin (left Hand)   (Replaces: W11657113)		Appelez-nous	-
14	W11759445		Badge   (Replaces: W11688412)			Immediately	$ 50.32
15	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
16	W11787121		Retainer Plug   (Replaces: W11719970)		Appelez-nous	-
