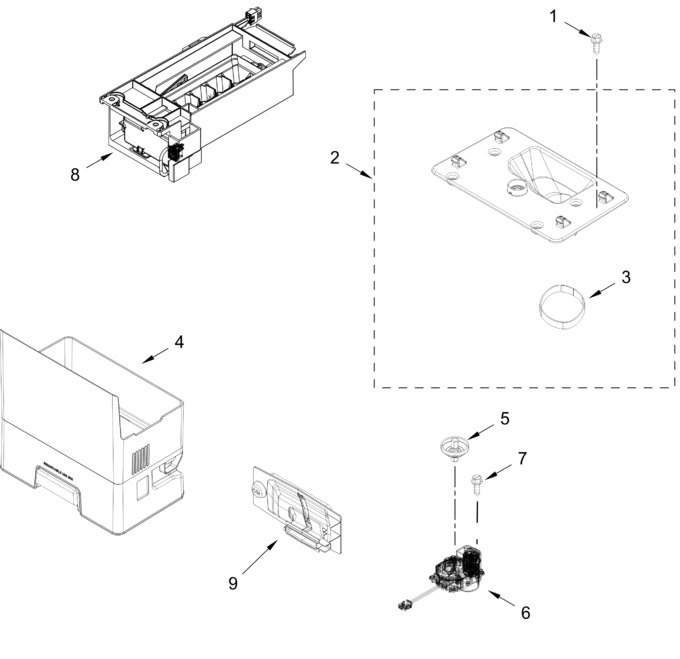

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 2 | W11787786 | Ice Chute Assembly (Replaces: W11603209) |
|
$ 62.60 | |||||
| 3 | WPW10291905 | Chute Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 4 | W11787788 | Ice Bin Assembly (Replaces: W11620276) |
|
$ 190.39 | |||||
| 5 | W11228132 | Motor Shaft (Replaces: W11363574) |
|
Immediately | $ 31.10 | ||||
| 6 | W11787789 | Dispenser Motor (Replaces: W11722714) |
|
- | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | W11788019 | Icemaker Assembly (Replaces: W11608631) |
|
$ 194.26 | |||||
| 9 | W11790664 | Ice Maker Air Duct Assembly (Replaces: W11644790) |
|
$ 101.06 |
