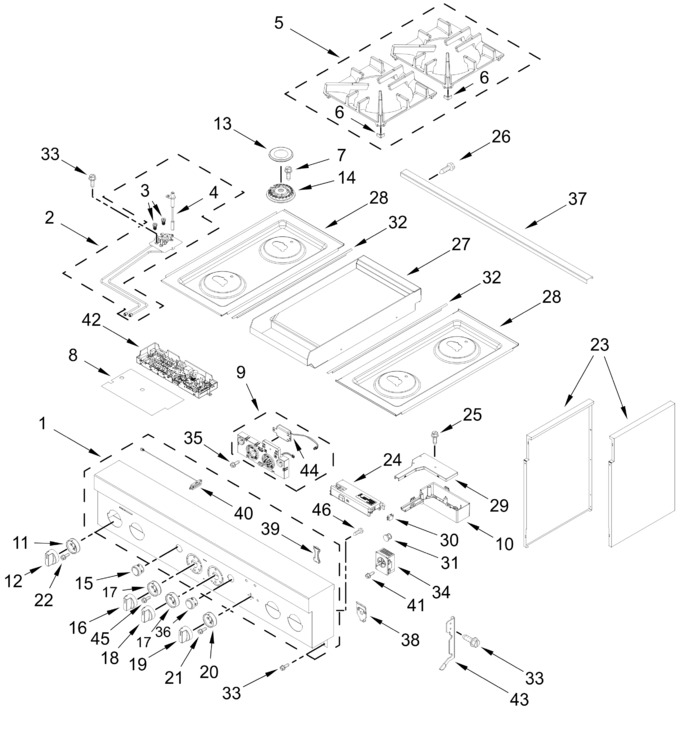

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11444077		Panel, Cooktop   (Replaces: W10878253)				$ 940.19
2	W11333305		Orifice Holder Assembly   (Replaces: W10892793)				$ 125.39
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 65.21
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Grate Assembly (black, Set Of 2)   (Replaces: W11291176)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492292		Interface, User   (Replaces: W11436330)				$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel (brass)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11785279		Knob, Burner (stainless)   (Replaces: W11560125)				$ 52.49
13	W11328971		Cap, Burner (black, Set Of 4)   (Replaces: W11121391)				$ 173.40
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
16	W11788844		Knob, Oven Steam Mode (stainless)   (Replaces: W11496093)				$ 52.49
17	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 28.02
18	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 118.01
19	W11620693		Knob, Griddle (stainless)   (Replaces: W11496089)		Appelez-nous	-
20	W11317495		Bezel, Griddle (brass)   (Replaces: W11104966)				$ 55.28
21	7101P30960		Screw		Appelez-nous	-
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W11333179		Panel, Left Cabinet Side   (Replaces: W11106881)				$ 419.69
24	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
25	7101P62460		Screw		Appelez-nous	-
26	7101P33860		Screw		Appelez-nous	-
27	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,547.02
28	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 502.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 356.52
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11156416		Trim, Island				$ 249.31
38	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
39	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
42	W11371064		Manager, Appliance (powermax)   (Replaces: W11100269)				$ 563.15
43	W10130760		Bracket, Moving Console (left)				$ 75.94
44	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
45	W10674068		Screw				$ 24.39
46	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI58AF8D252016DDED824FB66FD9161A41		(for 4 Cooktop Burners)		Appelez-nous	-
	W10892440		Orifice, Main (7.2k)				$ 99.86
	W11333306		Orifice Holder Assembly   (Replaces: W10892494)			Immediately	$ 127.98
	W10892418		Orifice, Main (15.4k)			Immediately	$ 103.03
	W10892429		Orifice, Simmer (2.0k)				$ 99.86
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 229.46
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11333303		Panel, Right Cabinet Side   (Replaces: W11106880)				$ 421.41
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI8EE4F5E59D536F62986D20F6E6C7927B		(left Front, Left Rear, Right Front)		Appelez-nous	-
	ARIF51CD619278F411F0D01263DCFA5380D		(assembly Breakdown Shown On Burner Box Page)		Appelez-nous	-
	ARI3CCC6EF4AF791FA50D2D2DAAC8BCDBD4		(for 2 Oven Knobs)		Appelez-nous	-
	W11620688		Orifice Holder Assembly   (Replaces: W11505833)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11238756		Igniter			Immediately	$ 67.96
	W11333312		Panel, Right Cooktop   (Replaces: W11038253)				$ 475.25
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 75.02
	W11333309		Orifice Holder Assembly   (Replaces: W10892730)				$ 122.96
