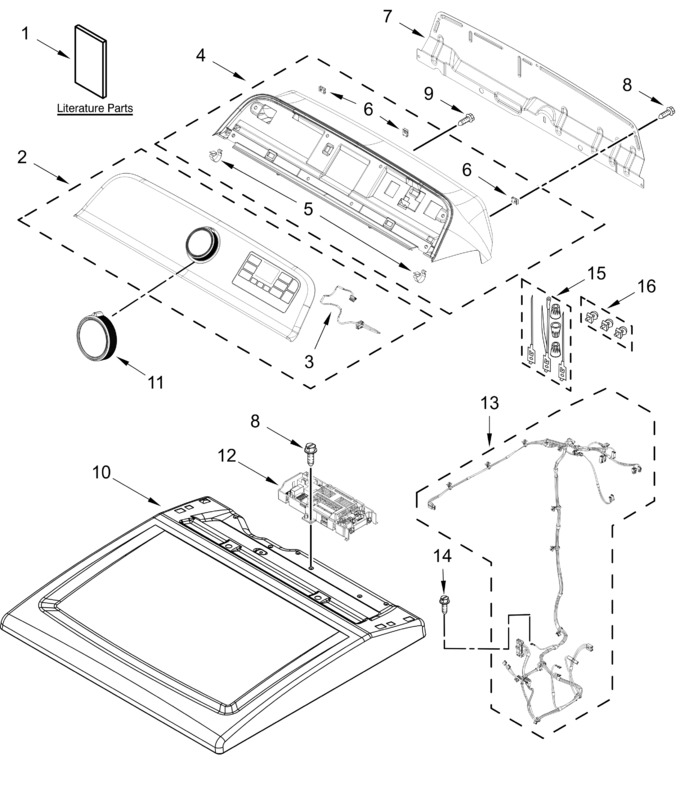

SELECT A DIAGRAM

Bulkhead Parts


Burner Assembly Parts


Cabinet Parts


Door Parts


Optional Parts (not Included)


Top And Console Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11790401		Assembly, Fascia   (Replaces: W11671639)				$ 462.63
3	W11790393		Harness, User Interface   (Replaces: W11689280)				$ 302.79
4	W11790878		Assembly, Console (grey)   (Replaces: W11677916)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
7	W11433112		Panel, Rear Console				$ 66.08
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W11790877		Top (silver)   (Replaces: W11673235)				$ 195.37
11	W11754594		Assembly, Knob		Appelez-nous	-
12	W11791567		Appliance Control Unit (acu)   (Replaces: W11679957)				$ 285.71
13	W11791565		Harness, Main   (Replaces: W11680019)		Appelez-nous	-
14	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
15	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
16	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
	W11678618		Tech Sheet		Appelez-nous	-
	W11679955		Owners Manual		Appelez-nous	-
	W11677727		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
