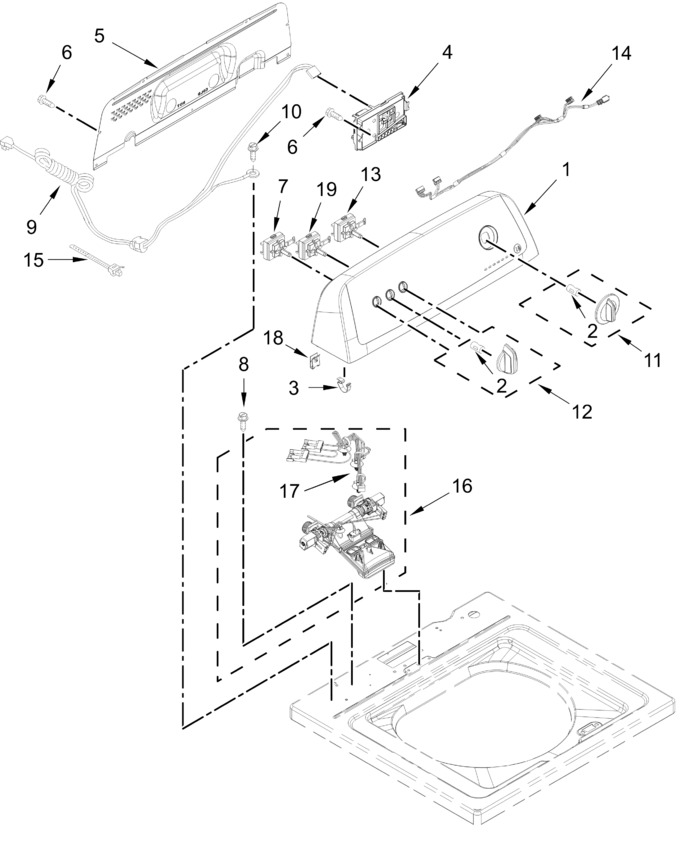

SELECT A DIAGRAM

Basket And Tub Parts


Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11816800		Assembly, Console (white)   (Replaces: W11774612)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	W11607637		Control Unit Assembly, Machine And Motor   (Replaces: W11578563)			Immediately	$ 310.49
5	W10409320		Panel, Console Rear Cover				$ 263.79
6	W11685943		Screw   (Replaces: W10660565)				$ 14.97
7	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 199.56
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
9	W10850133		Cord, Power   (Replaces: W10711784)			Immediately	$ 135.03
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
11	W11816801		Timer Knob Assembly (grey)   (Replaces: W11774614)		Appelez-nous	-
12	W11816802		Control Knob Assembly (grey)   (Replaces: W11774615)		Appelez-nous	-
13	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 188.32
14	W10694671		Harness, Upper				$ 190.60
15	W10339680		Cable Tie		Appelez-nous	-
16	W11210463		Inlet Assembly, Water   (Replaces: W11101906)			Immediately	$ 136.45
17	W10701401		Harness, Valve				$ 178.13
18	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
19	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 219.11
