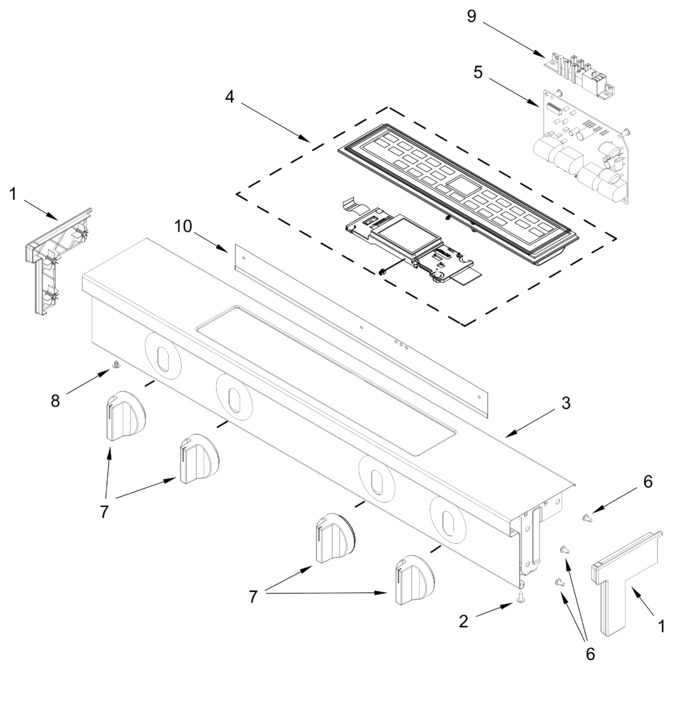

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747781 | Endcap (white, Left) (Replaces: W11420181) |
|
$ 60.63 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W11698959 | Panel, Control (white) |
|
- | |||||
| 4 | W11817184 | Control, User Interface (Replaces: W11785664) |
|
$ 419.37 | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 7 | W11814018 | Knob (white) (Replaces: W11632041) |
|
- | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 9 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 95.14 | ||||
| 10 | W11817164 | Console Filler (Replaces: W11784731) |
|
- | |||||
| W11747782 | Endcap (white, Right) (Replaces: W11420179) |
|
$ 60.63 |
