01 - Cover Sheet


02 - Upper Cabinet/drum Heater

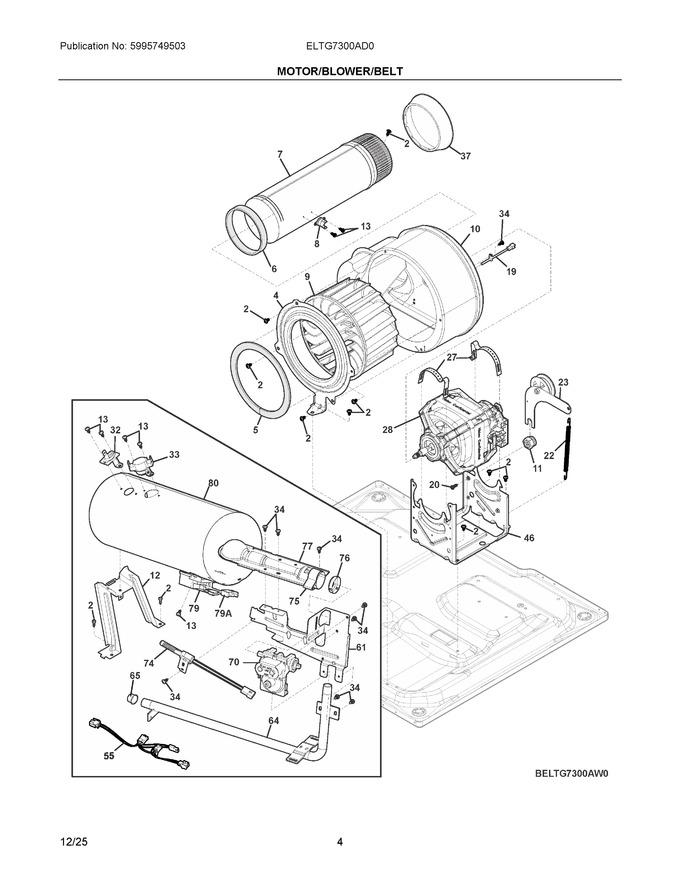

03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
4	5304505074		Spacer, Blower Front, Air Duct			Immediately	$ 25.70
5	5304505313		Gasket, Housing, Foam				$ 85.14
6	5304505318		Gasket, Spacer, Foam			Immediately	$ 18.48
7	5304515233		Tube, Exhaust, Rear				$ 61.86
8	134711401		Limiter, Thermal Exhaust, Flush Mount			Immediately	$ 39.42
9	5304513609		Blower Wheel, Assembly			Immediately	$ 69.31
10	5304529655		Blower Assembly, Airguide			Immediately	$ 132.54
11	5304525724		Spacer, Idler			Immediately	$ 39.36
12	134713901		Bracket, Heater/burner, Mounting		Appelez-nous	-
13	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 14.96
19	5304531948		Thermistor, Exhaust			Immediately	$ 61.74
20	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
22	131601000		Spring, Idler Arm			Immediately	$ 91.33
23	134793511		Idler Arm Assy, W/pulley			Immediately	$ 49.48
27	134242400		Clamp, Motor Mtg.			Immediately	$ 39.73
28	5304529782		Motor, Main Drive, 115v 60hz			Immediately	$ 319.58
32	137539200		Limiter, Thermal			Immediately	$ 27.10
33	137116700		Thermostat, High Limit			Immediately	$ 44.89
34	5304528020		Cable Tie, Push Mount				$ 10.45
37	137553500		Cover, Exhaust Tube				$ 52.95
46	5304525693		Bracket, Motor				$ 50.61
55	137029500		Harness, Burner				$ 69.30
61	134715800		Bracket, Gas Valve		Appelez-nous	-
64	140295139012		Pipe, Gas				$ 48.04
65	08015112		Cap, Pipe		Appelez-nous	-
70	4056015433		Gas Valve, Control				$ 129.78
74	137524000		Igniter, Assembly			Immediately	$ 185.06
75	134258500		Shutter, Air				$ 35.44
76	134714401		Collar, Alignment, Gas Valve   (Replaces: 134714400)				$ 12.85
77	134197701		Burner, Gas				$ 49.80
79	5303281135		Sensor, Radiant			Immediately	$ 113.40
80	5304507398		Tube, Exhaust, Extension				$ 73.90
77A	134197700		Burner, Gas				$ 71.66
79A	134259100		Harness, Flame Sensor			Immediately	$ 21.82
NI	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 14.96
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
NI	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
