SELECT A DIAGRAM
01 - Cover Sheet

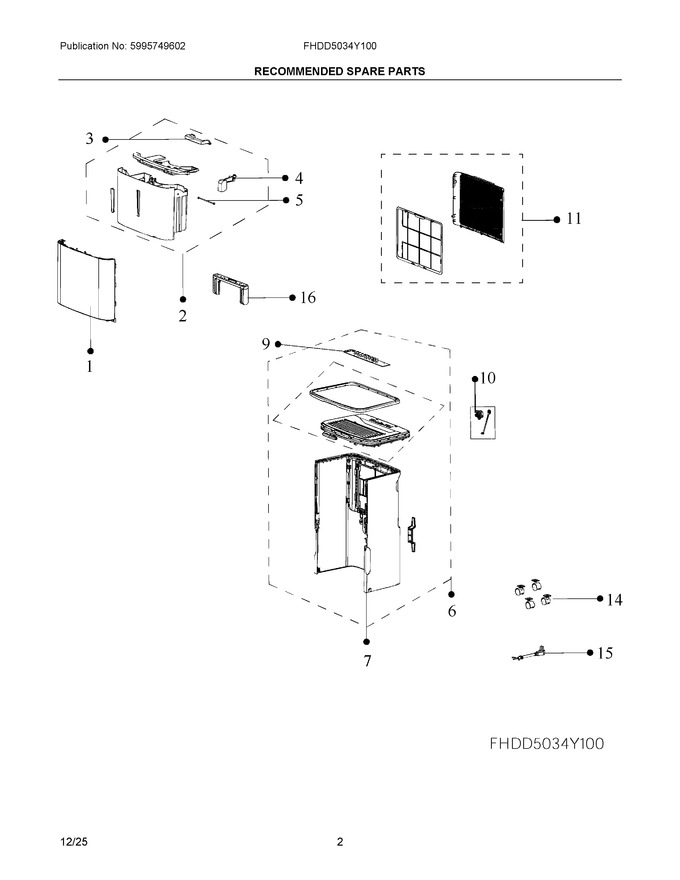

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056036694 | Front Panel, Assembly |
|
- | |||||
| 2 | 4056036702 | Water Tank, Assembly |
|
- | |||||
| 3 | 5304523390 | Handle, Bucket |
|
- | |||||
| 4 | 5304523391 | Float, Bucket |
|
$ 13.01 | |||||
| 5 | 4055978086 | Water Sphere, Connector |
|
- | |||||
| 6 | 4056036710 | Rear Panel, Assembly |
|
- | |||||
| 7 | 4056036728 | Rear Panel |
|
- | |||||
| 9 | 4056036744 | Display Board, Control |
|
- | |||||
| 10 | 4056036751 | Kit Drain, Screw Cover |
|
- | |||||
| 11 | 4056036769 | Grill, Air Inlet |
|
- | |||||
| 14 | 5304512486 | Caster, (4) |
|
$ 20.24 | |||||
| 15 | 5304523400 | Cord, Power |
|
- | |||||
| 16 | 4056036785 | Handle |
|
- |
