01 - 8 Cube Compact Ice Maker

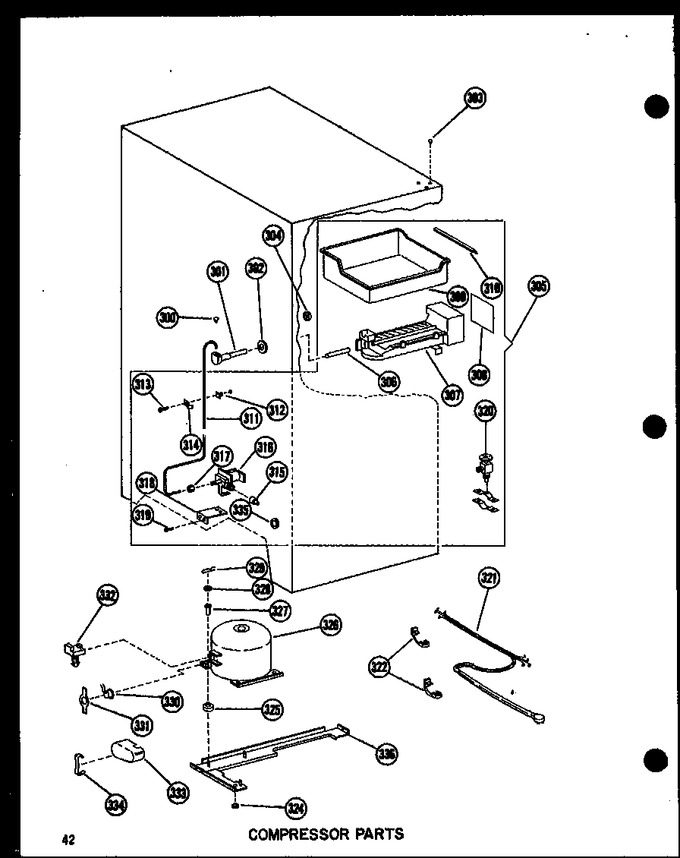

02 - Compressor Parts
03 - Condenser Parts
04 - Evap Parts
05 - Fz Door Parts
06 - Interior Parts
07 - Interior Parts
08 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 | M0310309 | Plug |
|
- | |||||
| 301 | B5630509 | Fill Tube Assy |
|
- | |||||
| 302 | A3091301 | Plug Button |
|
- | |||||
| 303 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 8.21 | ||||
| 303 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 303 | M0310711 | Plug |
|
- | |||||
| 303 | M0310712 | Plug |
|
- | |||||
| 304 | B5631801 | Cap Fill Tube |
|
- | |||||
| 306 | A3127404 | Tube |
|
- | |||||
| 307 | D7036801 | Ic2-(ice Maker) |
|
- | |||||
| 308 | B5662401 | Insert-im |
|
- | |||||
| 309 | WP67001255 | Pan, Ice (Replaces: D7053901) |
|
$ 213.23 | |||||
| 310 | C3637901 | Trim K |
|
- | |||||
| 311 | A3101504 | Pipe |
|
- | |||||
| 312 | M0580001 | Grommet, Screw |
|
- | |||||
| 313 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 314 | M0102804 | Clamp |
|
- | |||||
| 315 | A3084501 | Coupling, Solenoid Valve And H |
|
- | |||||
| 316 | 4318047 | Water Valve Kit (Replaces: D7036803) |
|
Immediately | $ 74.09 | ||||
| 317 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 318 | B5630701 | Bracket |
|
- | |||||
| 319 | WP489399 | Screw (Replaces: M0233103) |
|
$ 7.30 | |||||
| 319 | M0246017 | Screw |
|
- | |||||
| 320 | A3034801 | Saddle Valve |
|
- | |||||
| 321 | D7098802 | Wiring Harness |
|
- | |||||
| 322 | A0319702 | Relief, Strain |
|
- | |||||
| 322 | A0319703 | Strain Relief K |
|
- | |||||
| 324 | M0274038 | Washer |
|
- | |||||
| 325 | A3026101 | Grommet K |
|
- | |||||
| 326 | C3667101 | Compressor Aea1410axa |
|
- | |||||
| 327 | A3072001 | Sleeve K |
|
- | |||||
| 327 | A3164301 | Vinyl Sleeve |
|
- | |||||
| 328 | M0590101 | Washer, Nylon K |
|
- | |||||
| 329 | A3140801 | Clip K |
|
- | |||||
| 330 | C3689102 | Overload |
|
- | |||||
| 331 | A3043601 | Spring K |
|
- | |||||
| 332 | C3689201 | Relay |
|
- | |||||
| 333 | B0551801 | Terminal Cover |
|
- | |||||
| 334 | A3041801 | Strap K |
|
- | |||||
| 335 | A3080002 | Plug, Button (wht) |
|
- | |||||
| 335 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 336 | C3688603 | Weldment, Compressor Support |
|
- |
