Diagram # Part Number Description Series Availability Ships Price Add to Cart
140 M0230926 Screw Appelez-nous -
141 B5690302 Escutcheon Appelez-nous -
142 C8716301 Thin Plate-escut Appelez-nous -
143 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

144 C8702602 Bracket, Control Appelez-nous -
145 M0341201 Switch Appelez-nous -
146 M0215004 Screw Appelez-nous -
147 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

148 D7009801 Knob Appelez-nous -
149 C3615003 Control C H Appelez-nous -
150 B5636608 Cover-cap Tube Appelez-nous -
151 B5667301 Clip,wire Appelez-nous -
152 M0580001 Grommet, Screw Appelez-nous -
153 B5689501 Support Appelez-nous -
154 D3917304 Frame-glide Out Appelez-nous -
155 67006425 Screw   (Replaces: M0230917) In-Stock Immediately $ 7.30

156 D3959403 Ice Container Appelez-nous -
157 WP841180A Tray, Ice   (Replaces: C8717801) In-Stock Immediately $ 47.84

158 B5690901 Heat Conductor Appelez-nous -
159 D7153401 Evaporator Cover Appelez-nous -
160 67006425 Screw   (Replaces: M0230917) In-Stock Immediately $ 7.30

161 A3069101 Plug Appelez-nous -
162 A3205701 Shelf Support Appelez-nous -
163 A3189304 Gasket, Foam Appelez-nous -
164 B0571806 Handle Basket Appelez-nous -
165 D7157102 Basket-freezer Appelez-nous -
166 B5688801 Trim Appelez-nous -
167 B5693801 Angle-shelf Supt Appelez-nous -
168 D7154101 Shelf-fr Appelez-nous -
169 B5636301 Cap Appelez-nous -
170 WP67001130 Plug, Button (wht)   (Replaces: M0310701) In-Stock Immediately $ 8.21

171 D3917303 Frame-glide Out Appelez-nous -
173 A3214701 Hinge Pin Appelez-nous -
175 C8706101 Door, Tunnel Appelez-nous -
176 D7193001 Net Tunnel, Ice Tray Appelez-nous -
177 M0305301 Diode Appelez-nous -
178 A3221101 Wire-jumper Appelez-nous -
179 C8730101 Shield, Light Appelez-nous -
180 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

181 C8708801 Socket-light Appelez-nous -
182 M0288010 Speed Nut Appelez-nous -
183 67006425 Screw   (Replaces: M0230917) In-Stock Immediately $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

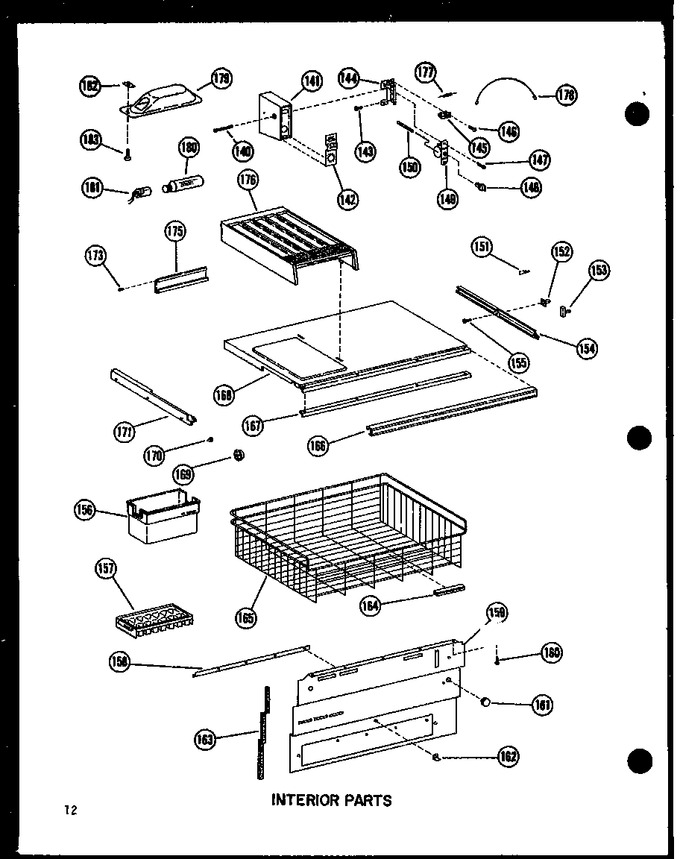

Diagram for BC20W (BOM: P6023513W)
