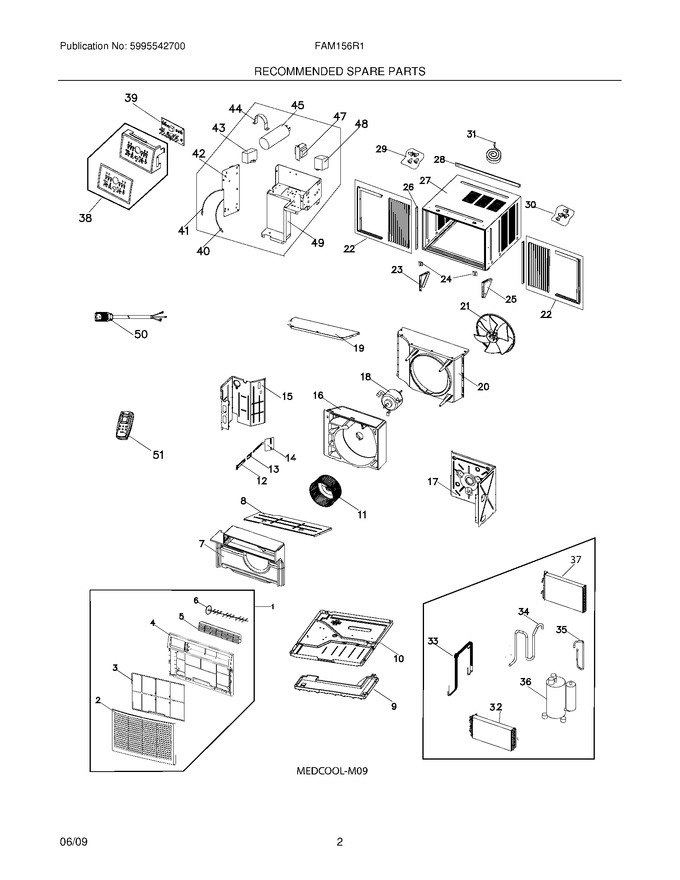

01 - Cover
03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304472522 | Front Panel Assy.,incl/2,3,4,5,6 |
|
- | |||||
| 2 | 5304472523 | Panel,front Grille ,tilt-out |
|
- | |||||
| 3 | 5304472524 | Filter,air |
|
- | |||||
| 4 | 5304472525 | Panel,frame,front,frame ,front |
|
- | |||||
| 5 | 5304472526 | Louver,horizontal |
|
- | |||||
| 6 | 5304472527 | Louver,vertical |
|
- | |||||
| 7 | 5304472528 | Scroll,blower Housing ,front |
|
- | |||||
| 8 | 5304472529 | Cover,blower Scroll ,front |
|
- | |||||
| 9 | 5304472530 | Tray,drip Pan |
|
- | |||||
| 10 | 5304472531 | Base,unit Chassis |
|
- | |||||
| 11 | 5304472532 | Blower Wheel,centrifugal Fan |
|
- | |||||
| 12 | 5304472533 | Handle,vent Control |
|
- | |||||
| 13 | 5304472534 | Link,lever/vent Door ,detent |
|
- | |||||
| 14 | 5304472535 | Door,vent Control,w/lever,vent Control ,with Lever |
|
- | |||||
| 15 | 5304472536 | Bulkhead,partition ,front Left |
|
- | |||||
| 16 | 5304472537 | Scroll,blower Housing ,rear |
|
- | |||||
| 17 | 5304472538 | Bulkhead,partition ,front Right |
|
- | |||||
| 19 | 5304472540 | Cover,condenser/fan ,top |
|
- | |||||
| 20 | 5304472541 | Shroud,condenser Fan |
|
- | |||||
| 22 | 5304472542 | Window Filler Kit,slider Panels |
|
- | |||||
| 23 | 5304472358 | Bracket,mounting ,left ,window |
|
- | |||||
| 24 | 5304472360 | Bracket,sill Angle,sill Angle |
|
- | |||||
| 25 | 5304472359 | Bracket,mounting ,right ,window |
|
- | |||||
| 26 | 5304472543 | Retainer,shutter Mount ,cabinet Side |
|
- | |||||
| 27 | 5304472544 | Cabinet,wrapper/sleeve |
|
- | |||||
| 28 | 5304472545 | Rail,top |
|
- | |||||
| 29 | 5304472546 | Screw Kit,top Rail Mount |
|
- | |||||
| 30 | 5304472547 | Hardware,mounting ,screws/locks |
|
- | |||||
| 31 | 5304472548 | Seal Kit,foam ,top,bottom,sash |
|
- | |||||
| 44 | 5304472557 | Strap,capacitor Mtg. |
|
- | |||||
| 45 | 5304472558 | Capacitor |
|
- | |||||
| 47 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| 49 | 5304472560 | Control Box |
|
- | |||||
| F18 | 5304472539 | Motor,fan |
|
- | |||||
| F21 | 5304538708 | Fan Blade,axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| F3 | 5304471199 | Remote Control,transmitter |
|
$ 92.09 | |||||
| F32 | 5304472549 | Evaporator |
|
- | |||||
| F33 | 5304472550 | Tube,capillary |
|
- | |||||
| F34 | 5304472551 | Tube,suction |
|
- | |||||
| F35 | 5304472552 | Tube,discharge |
|
- | |||||
| F36 | 5304472553 | Compressor |
|
- | |||||
| F37 | 5304472554 | Condenser |
|
$ 318.65 | |||||
| F38 | 5304472561 | Control Panel,with Overlay |
|
- | |||||
| F39 | 5304472562 | Pc Board,input/display |
|
$ 99.20 | |||||
| F40 | 5304512375 | Thermistor,evaporator ,sensor (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F41 | 5304471276 | Thermistor,temp Sensor ,indoor |
|
$ 33.88 | |||||
| F42 | 5304472416 | Pc Board,main Control |
|
- | |||||
| F43 | 5304470990 | Capacitor,fan Motor |
|
- | |||||
| F48 | 5304472559 | Ionizer,clean Air |
|
- | |||||
| F50 | 5304470995 | Power Cord,electric ,lcdi |
|
- |
