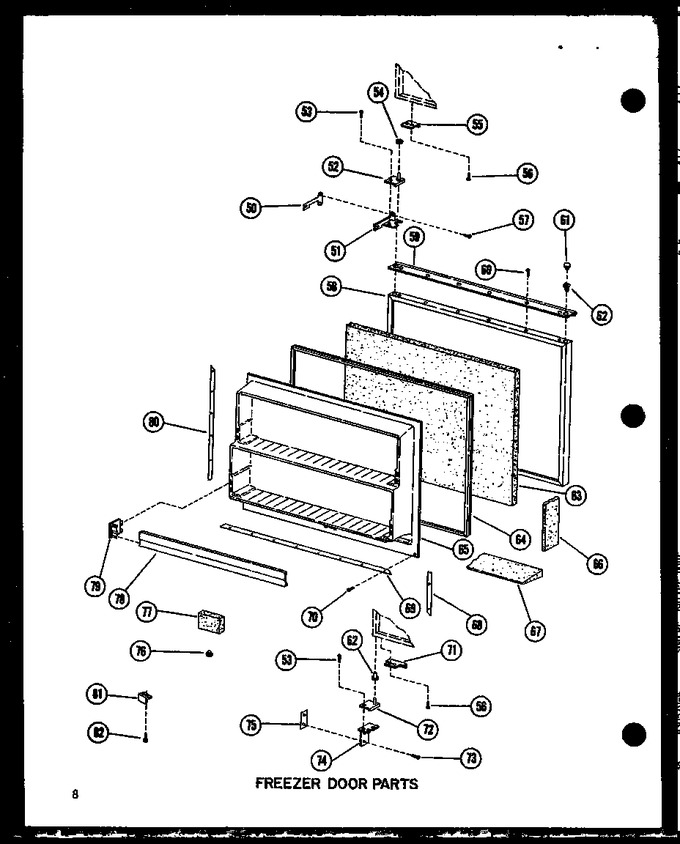

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
50	A3143501		Shim K		Appelez-nous	-
50	A3143502		Shim K		Appelez-nous	-
50	A3143503		Shim K		Appelez-nous	-
51	B5640502		Center Hinge Assy		Appelez-nous	-
52	B5640402		Center Hinge Assy		Appelez-nous	-
53	M0205441		Screw K		Appelez-nous	-
54	A3145101		Washer K		Appelez-nous	-
55	A3139801		Stop Door		Appelez-nous	-
56	M0205631		Machine Screw		Appelez-nous	-
57	M0205731		Screw Phillips		Appelez-nous	-
57	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
58	D7057765		Door Fr-c-p-bc20		Appelez-nous	-
58	D7057766		Outer Door Shell, Fz, Avocado		Appelez-nous	-
58	D7057767		Outer Door Shell, Fz, Autumn G		Appelez-nous	-
58	D7057764		Outer Door Shell, Fz, White		Appelez-nous	-
59	C8704601		Handle		Appelez-nous	-
60	M0214028		Screw		Appelez-nous	-
60	M0205631		Machine Screw		Appelez-nous	-
61	M0310605		Plug		Appelez-nous	-
62	C3652901		Bushing, Hinge Pin		Appelez-nous	-
63	B5689801		Insulation, Door		Appelez-nous	-
64	D3928209		Gasket		Appelez-nous	-
65	D7156202		Inner Door Panel		Appelez-nous	-
66	A3195002		Insulation Ft. K		Appelez-nous	-
67	B5690101		Support		Appelez-nous	-
67	B5690001		Support		Appelez-nous	-
68	D3928109		Retainer Gasket		Appelez-nous	-
69	D3928102		Retainer Gasket		Appelez-nous	-
70	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
71	A3197801		Stop Door		Appelez-nous	-
72	B5640901		Hinge Kit		Appelez-nous	-
73	M0246159		Screw		Appelez-nous	-
74	B5640201		Hinge Kit		Appelez-nous	-
75	A3143602		Shim		Appelez-nous	-
75	A3143603		Shim		Appelez-nous	-
75	A3143601		Shim		Appelez-nous	-
76	A3101901		Vent Assy		Appelez-nous	-
77	A3091901		Block Air Vent		Appelez-nous	-
78	D3976719		Pkg Retainer K		Appelez-nous	-
79	C3680901		Support K		Appelez-nous	-
79	C3680902		Support K		Appelez-nous	-
80	D3928110		Retainer Gasket		Appelez-nous	-
81	B5666401		Strike		Appelez-nous	-
82	M0241205		Screw		Appelez-nous	-
