01 - 8 Cube Compact Ice Maker
02 - Compressor Parts

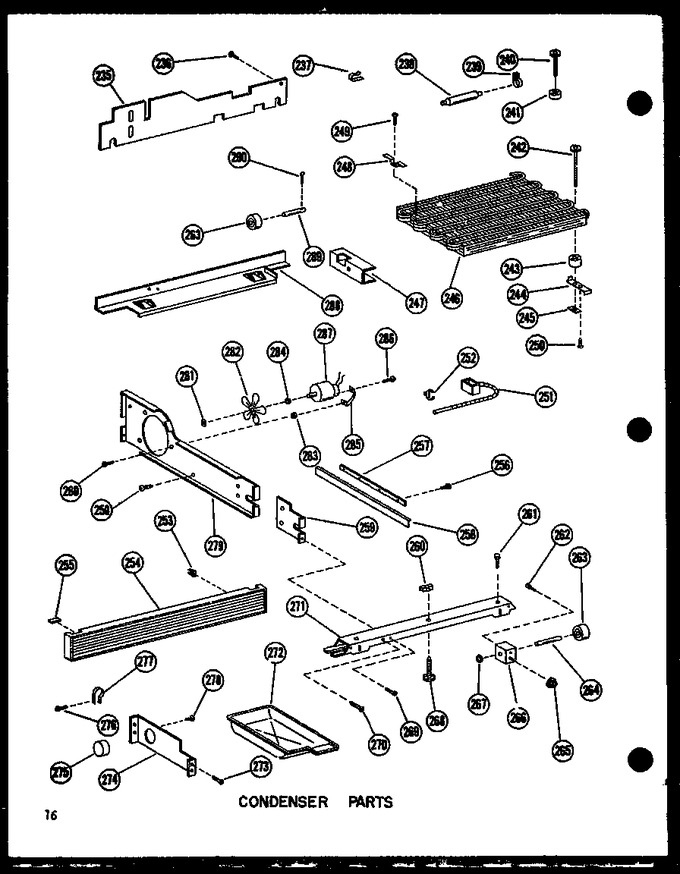

03 - Condenser Parts
04 - Evap Parts
05 - Fz Door Parts
06 - Interior Parts
07 - Interior Parts
08 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 235 | C3655001 | Back, Mach Compt K |
|
- | |||||
| 236 | M0241118 | Screw-sm |
|
- | |||||
| 237 | M0110503 | Clip |
|
- | |||||
| 238 | WPB2150504 | Drier (Replaces: B2150501) |
|
$ 136.98 | |||||
| 239 | M0104001 | Clamp,drier |
|
- | |||||
| 240 | M0257037 | Sems Fastner |
|
- | |||||
| 241 | A3013906 | Spacer |
|
- | |||||
| 242 | M0257039 | Sems Fastner |
|
- | |||||
| 243 | A3013907 | Spacer |
|
- | |||||
| 244 | A3085401 | Bracket, Support |
|
- | |||||
| 245 | M0286003 | Nut A |
|
- | |||||
| 246 | D7010701 | Condenser Assy Pnt |
|
- | |||||
| 247 | B0544101 | Spacer |
|
- | |||||
| 248 | A3054501 | Clip-cond |
|
- | |||||
| 249 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 250 | M0241118 | Screw-sm |
|
- | |||||
| 251 | C3607201 | Drain Tube Assy |
|
- | |||||
| 252 | M0116401 | Clip |
|
- | |||||
| 253 | M0117301 | Clip, Grille |
|
- | |||||
| 254 | D7070202 | Grille-toe |
|
- | |||||
| 255 | B5641301 | Grille-toe |
|
- | |||||
| 256 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 257 | B0599603 | Seal |
|
- | |||||
| 258 | B0599701 | Retainer |
|
- | |||||
| 259 | B5619801 | Extension |
|
- | |||||
| 260 | A3122601 | Wing Nut |
|
- | |||||
| 261 | M0267101 | Screw |
|
- | |||||
| 262 | M0222240 | Roller Bracket Kit |
|
- | |||||
| 263 | M0520102 | Roller |
|
- | |||||
| 264 | M1210002 | Rivet |
|
- | |||||
| 265 | M0283510 | Nut, Self Thread |
|
- | |||||
| 266 | A3125201 | Bracket K |
|
- | |||||
| 267 | M0289401 | Fastener |
|
- | |||||
| 268 | B1601601 | Foot-levelling |
|
- | |||||
| 269 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 270 | M0233844 | Screw, T F |
|
- | |||||
| 271 | B5627601 | Front Rail |
|
- | |||||
| 272 | D7001001 | Pan, Drain |
|
- | |||||
| 272 | B5691701 | Pad A |
|
- | |||||
| 273 | WP489464 | Screw K (Replaces: M0211317) |
|
Immediately | $ 8.38 | ||||
| 274 | C3647901 | Bracket, Timer |
|
- | |||||
| 275 | D7004106 | Timer, Defrost |
|
- | |||||
| 276 | M0102406 | Clamp |
|
- | |||||
| 277 | M0211532 | Screw |
|
- | |||||
| 278 | M0216617 | Screw |
|
- | |||||
| 279 | C3617602 | Fan Shroud |
|
- | |||||
| 280 | M0221132 | Screw |
|
- | |||||
| 281 | WP486692 | Nut K (Replaces: M0286113) |
|
$ 8.43 | |||||
| 282 | B0598501 | Blade, Fan |
|
- | |||||
| 283 | M0500107 | Grommet K |
|
- | |||||
| 284 | M0274015 | Washer K |
|
- | |||||
| 285 | B0598701 | Bracket, Cond Motor |
|
- | |||||
| 286 | M0220101 | Screw |
|
- | |||||
| 287 | 833697 | Motor, Fan (Replaces: C3661701) |
|
Immediately | $ 109.14 | ||||
| 288 | C3611301 | Rail, Rear |
|
- | |||||
| 289 | M1210001 | Pivot Pin K |
|
- | |||||
| 290 | M1200001 | Cotter Pin K |
|
- |
