01 - Cover

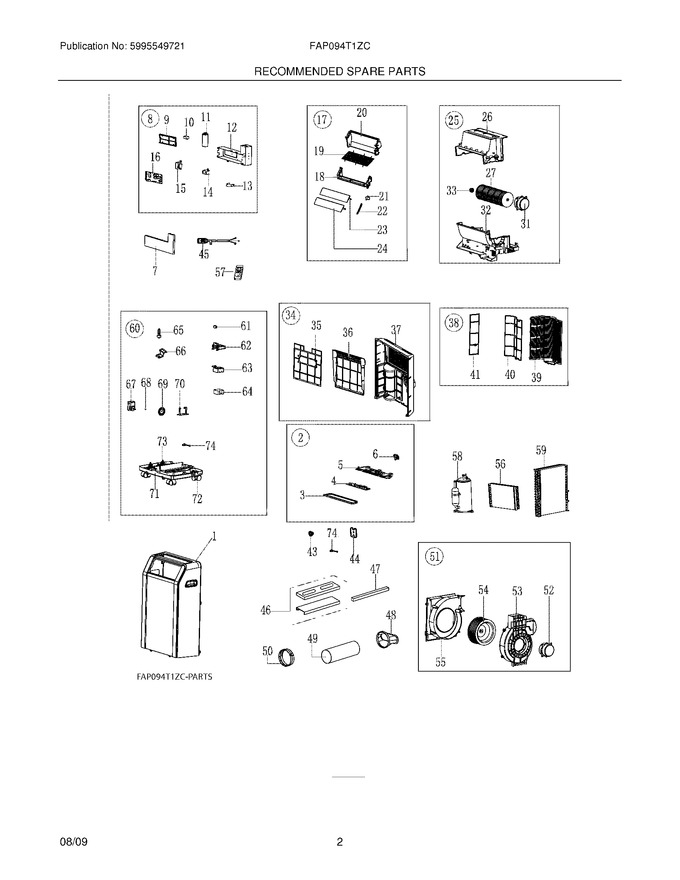

03 - Recommemded Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304473848 | · Cover,control Panel |
|
- | |||||
| 5 | 5304474924 | · Panel,control Mount |
|
- | |||||
| 6 | 5304473963 | · Lens,remote Sensor |
|
- | |||||
| 7 | 5304473964 | Cover,control Box |
|
- | |||||
| 9 | 5304473966 | · Bracket,pc Board Mount |
|
- | |||||
| 12 | 5304473969 | · Control Box,housing ,bottom |
|
- | |||||
| 13 | 5304473970 | · Strap,capacitor Clamp |
|
- | |||||
| 18 | 5304473975 | · Bracket 1,louver Mount |
|
- | |||||
| 19 | 5304473976 | · Grille,air Vent Cover ,metal |
|
- | |||||
| 20 | 5304473977 | · Bracket 2,louver Mount |
|
- | |||||
| 26 | 5304473983 | · Scroll,indoor Blower ,top |
|
- | |||||
| 32 | 5304473989 | · Scroll,indoor Blower ,bottom |
|
- | |||||
| 33 | 5304473990 | · Bearing Block,motor Shaft |
|
- | |||||
| 36 | 5304473993 | · Grille,air Inlet ,rear |
|
- | |||||
| 37 | 5304473994 | · Panel,cabinet Back ,rear |
|
- | |||||
| 39 | 5304473996 | · Grille,inlet ,outdoor Air |
|
- | |||||
| 43 | 5304474000 | Connector,drain Hose ,threaded |
|
$ 16.80 | |||||
| 44 | 5304474001 | Cover,power Cord |
|
- | |||||
| 46 | 5304474003 | Window Slider Kit |
|
- | |||||
| 47 | 5304474004 | Seal,window ,foam |
|
- | |||||
| 48 | 5304474005 | Adapter B,hose-to-window |
|
- | |||||
| 49 | 5304474006 | Duct,exhaust Hose |
|
- | |||||
| 50 | 5304474010 | Adapter A,hose-to-unit |
|
- | |||||
| 53 | 5304474013 | · Scroll,outdoor Blower |
|
- | |||||
| 55 | 5304474015 | · Cover,scroll ,outdoor Blower |
|
- | |||||
| 62 | 5304474022 | · Bracket,switch Holder |
|
- | |||||
| 63 | 5304474020 | · Housing,float |
|
- | |||||
| 66 | 5304474025 | · Bracket,float Switch |
|
- | |||||
| 68 | 5304474027 | · Spring,slinger |
|
- | |||||
| 70 | 5304474029 | · Bracket,slinger Motor |
|
- | |||||
| 71 | 5304474030 | · Base,unit Chassis |
|
- | |||||
| 72 | 5304474031 | · Caster,roller ,(4) |
|
- | |||||
| 73 | 5304474032 | · Bolt,mounting ,compressor |
|
- | |||||
| 74 | 5304473999 | · Plug,drain Spigot |
|
$ 13.01 | |||||
| F1 | 5304473846 | Cabinet Assy,front ,w/handles |
|
- | |||||
| F10 | 5304473967 | · Capacitor |
|
- | |||||
| F11 | 5304473968 | · Capacitor,compressor |
|
- | |||||
| F14 | 5304473971 | · Capacitor |
|
- | |||||
| F15 | 5304473972 | · Transformer,power |
|
- | |||||
| F16 | 5304474925 | · Pc Board,control/power |
|
- | |||||
| F17 | 5304473974 | Vent Assembly,indoor Air |
|
- | |||||
| F2 | 5304474922 | Console Assembly,control |
|
- | |||||
| F21 | 5304473978 | · Motor,vent Louvers |
|
- | |||||
| F22 | 5304473979 | · Link,louver ,horizontal |
|
- | |||||
| F23 | 5304473980 | · Louver 2,horizontal |
|
- | |||||
| F24 | 5304473981 | · Louver 1,horizontal |
|
- | |||||
| F25 | 5304473982 | Scroll Assembly,indoor Blower |
|
- | |||||
| F27 | 5304473984 | · Blower Wheel,indoor Fan |
|
- | |||||
| F31 | 5304473988 | · Motor,indoor Blower |
|
$ 236.15 | |||||
| F34 | 5304473991 | Cabinet Assembly,rear |
|
- | |||||
| F35 | 5304473992 | · Filter,air Inlet ,rear |
|
- | |||||
| F38 | 5304473995 | Inlet Assembly,outdoor Air |
|
- | |||||
| F4 | 5304474923 | · Pc Board,display/input |
|
- | |||||
| F40 | 5304473997 | · Filter,condenser Air ,large |
|
- | |||||
| F41 | 5304473998 | · Filter,condenser Air ,small |
|
- | |||||
| F45 | 5304474002 | Power Cord,electric ,lcdi |
|
- | |||||
| F51 | 5304474011 | Scroll Assembly,outdoor Blower |
|
- | |||||
| F52 | 5304474012 | · Motor,outdoor Blower |
|
- | |||||
| F54 | 5304474014 | · Blower Wheel,outdoor Fan |
|
- | |||||
| F56 | 5304474016 | Evaporator |
|
- | |||||
| F57 | 5304474926 | Remote Control,transmitter |
|
- | |||||
| F58 | 5304474018 | Compressor |
|
- | |||||
| F59 | 5304474019 | Condenser |
|
- | |||||
| F60 | 5304474932 | Base Assembly |
|
- | |||||
| F61 | 5304474021 | · Microswitch,upper ,overflow |
|
- | |||||
| F64 | 5304474023 | · Float,bobber |
|
- | |||||
| F65 | 5304474024 | · Switch,float ,lower ,pump-out |
|
- | |||||
| F67 | 5304474026 | · Motor,slinger |
|
- | |||||
| F69 | 5304474028 | · Slinger,water Wheel ,condensate |
|
- | |||||
| F8 | 5304473965 | Control Box Assembly |
|
- |
