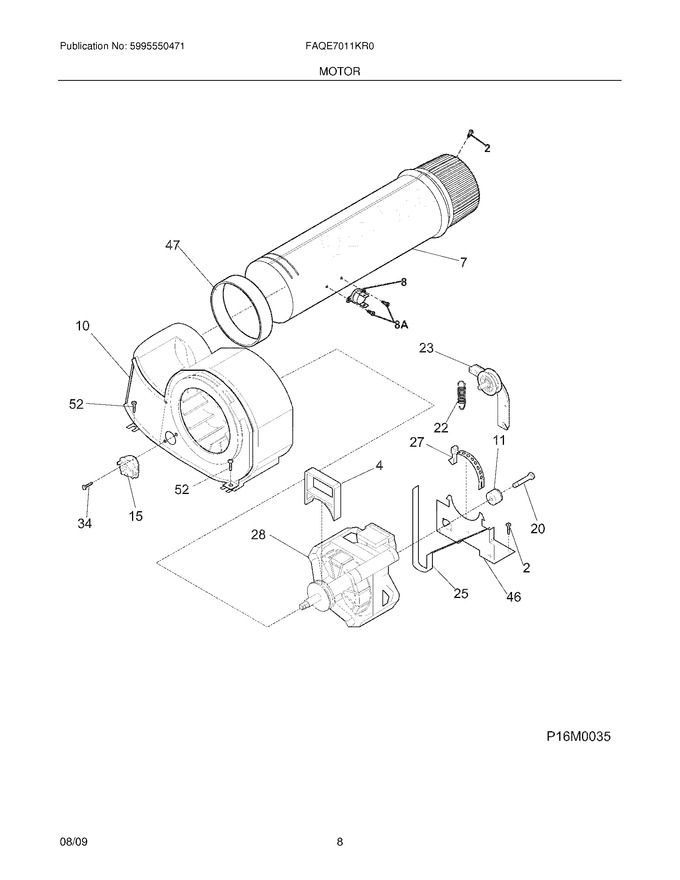

09 - Motor
11 - Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 4 | 131435200 | Lock,blower Housing |
|
$ 81.13 | |||||
| 7 | 5304509710 | Tube,exhaust ,rear (Replaces: 134693900) |
|
$ 29.93 | |||||
| 8 | 134711401 | Limiter,thermal ,exhaust ,flush Mount (Replaces: 134711400) |
|
Immediately | $ 39.42 | ||||
| 11 | 131749800 | Spacer-idler |
|
$ 48.83 | |||||
| 20 | 131017900 | Screw,hex Head ,1/4-20t X 1.25 ,spacer Mtg.,thread Cutting |
|
$ 16.07 | |||||
| 22 | 131601000 | Spring,idler Arm |
|
Immediately | $ 91.33 | ||||
| 23 | 134793511 | Idler Arm Assy,w/pulley (Replaces: 134793500) |
|
Immediately | $ 49.48 | ||||
| 27 | 134242400 | Clamp,motor Mtg. |
|
Immediately | $ 39.73 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.73 | |||||
| 46 | 134693500 | Bracket,motor Mounting |
|
$ 38.12 | |||||
| 47 | 131633300 | Seal-exhaust Tube |
|
$ 19.06 | |||||
| 52 | 131202300 | Screw,10-16ab X 0.625 |
|
Immediately | $ 14.96 | ||||
| 8A | 134935200 | Screw,no.8-32 X .25 ,w/no.6 Quadrexpan |
|
$ 14.96 | |||||
| F10 | 131775600 | Blower Assy,housing ,w/cover & Wheel |
|
Immediately | $ 172.70 | ||||
| F15 | 134587700 | Thermistor,control |
|
Immediately | $ 62.65 | ||||
| F25 | 134719300 | Belt,``h`` ,poly V ,5 Rib |
|
Immediately | $ 76.31 | ||||
| F28 | 5304529782 | Motor,dryer Drive ,with Pulley (Replaces: 137115900) |
|
Immediately | $ 319.58 |
