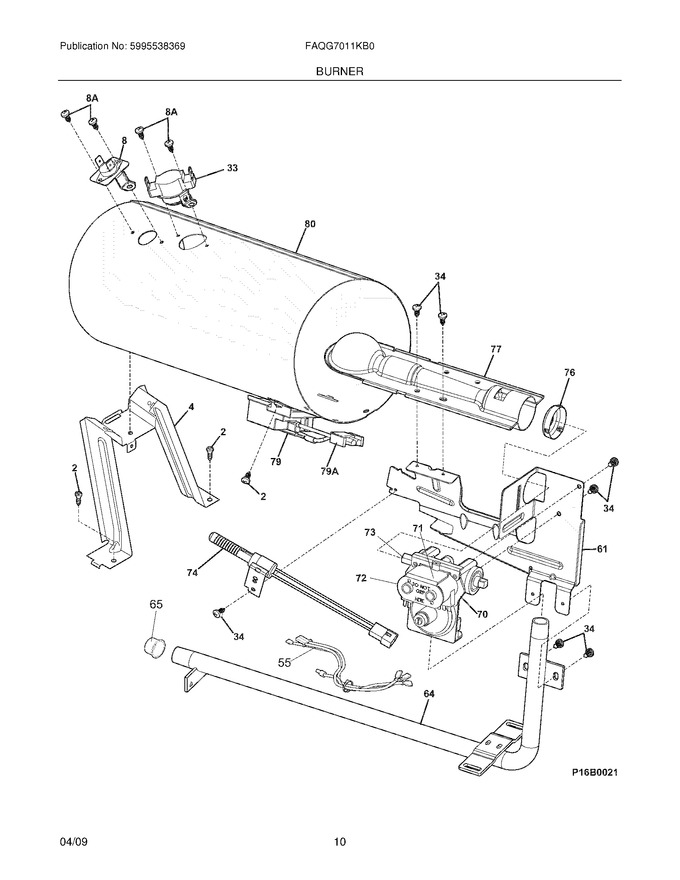

11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
4	134785000		Bracket,heater/burner ,mounting		Appelez-nous	-
8	137539200		Limiter,thermal   (Replaces: 134711500)			Immediately	$ 27.10
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
55	137029500		Harness,burner				$ 69.30
61	134715800		Bracket,gas Valve		Appelez-nous	-
64	137019100		Pipe,gas		Appelez-nous	-
65	08015112		Cap-pipe		Appelez-nous	-
76	134714401		Collar,alignment ,gas Valve   (Replaces: 134714400)				$ 12.85
79A	134259100		Harness,flame Sensor			Immediately	$ 21.82
8A	134935200		Screw,no.8-32 X .25 ,w/no.6 Quadrexpan				$ 14.96
F33	137116700		Thermostat,high Limit			Immediately	$ 44.89
F70	5303207409		Valve Gas				$ 481.95
F71	5303307291		Coil-secondary		Appelez-nous	-
F72	5303307292		Coil-booster		Appelez-nous	-
F73	5303207410		Orifice,natural Gas ,size 44				$ 88.99
F74	5304517325		Igniter Assy   (Replaces: 134192000)				$ 255.06
F77	134197700		Burner,gas				$ 71.66
F79	5303281135		Sensor,radiant			Immediately	$ 113.40
F80	134692500		Tube,burner		Appelez-nous	-
