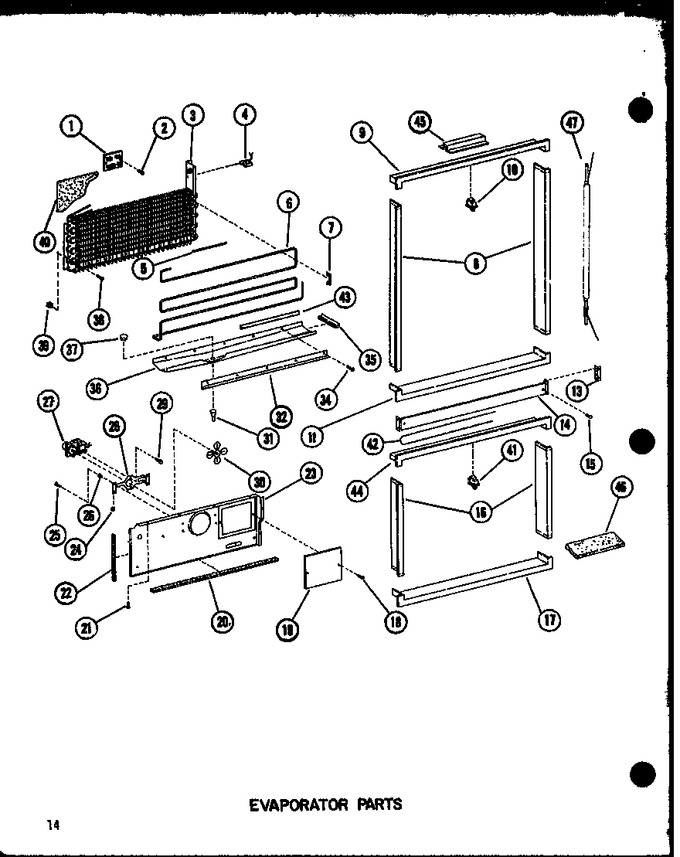

01 - 8 Cube Compact Ice Maker
02 - Compressor Parts
03 - Condenser Parts
04 - Evap Parts
05 - Fz Door Parts
06 - Interior Parts
07 - Interior Parts
08 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5707502 | Terminal Board |
|
- | |||||
| 2 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 3 | D7156001 | Evaporator |
|
- | |||||
| 4 | C3686601 | Thermostat K |
|
- | |||||
| 5 | A3205801 | Control Well |
|
- | |||||
| 6 | D7153801 | Heater |
|
- | |||||
| 7 | M0110301 | Clip |
|
- | |||||
| 8 | D3951718 | Breaker Frame, Ref Sides |
|
- | |||||
| 9 | D3981202 | Frame-breaker |
|
- | |||||
| 9 | D7157201 | Breaker Frame, Ref Top |
|
- | |||||
| 10 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 11 | D3981201 | Breaker Frame, Fz Bottom |
|
- | |||||
| 13 | A3140702 | Tap Strip-hinge |
|
- | |||||
| 13 | A3140701 | Top Strip Hinge |
|
- | |||||
| 14 | C8807501 | Ctr Mullion |
|
- | |||||
| 14 | C8807502 | Ctr Mullion |
|
- | |||||
| 14 | C8807503 | Ctr Mullion |
|
- | |||||
| 14 | C8807504 | Ctr Mullion-g |
|
- | |||||
| 14 | C8807505 | Ctr Mullion-l |
|
- | |||||
| 15 | M0310702 | Plug Button, Mullion, Copperto |
|
- | |||||
| 15 | M0310716 | Plug |
|
- | |||||
| 15 | M0310714 | Plug |
|
- | |||||
| 15 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 8.21 | ||||
| 15 | M0310703 | Plug |
|
- | |||||
| 15 | M0310704 | Plug |
|
- | |||||
| 16 | D3951717 | Breaker Frame, Fz Sides |
|
- | |||||
| 17 | D3980601 | Br Frame |
|
- | |||||
| 18 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 8.25 | ||||
| 19 | A3201501 | Plate-cover |
|
- | |||||
| 20 | A3189305 | Gasket |
|
- | |||||
| 21 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 22 | B5697501 | Gasket |
|
- | |||||
| 23 | C8820001 | Orifice Plate Assy |
|
- | |||||
| 24 | M0110501 | Clip K |
|
- | |||||
| 25 | M0233106 | Screw |
|
- | |||||
| 26 | A0381401 | Eyelet K |
|
- | |||||
| 26 | YA0381501 | Clip, Waterline |
|
- | |||||
| 27 | C3689301 | Motor Kit |
|
- | |||||
| 28 | C3681601 | Bracket |
|
- | |||||
| 29 | WP3400094 | Screw (Replaces: M0258055) |
|
$ 9.26 | |||||
| 30 | B5687301 | Fan Blade |
|
- | |||||
| 31 | D7384701 | Drain Tube |
|
- | |||||
| 32 | B5686801 | Clamp |
|
- | |||||
| 34 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 35 | A3098301 | Gasket Drip Tray K |
|
- | |||||
| 35 | A3098302 | Gasket K |
|
- | |||||
| 36 | D7155701 | Drip Tray |
|
- | |||||
| 37 | A3113701 | Drain Screen |
|
- | |||||
| 38 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 39 | M0580001 | Grommet, Screw |
|
- | |||||
| 40 | B5692301 | Gasket |
|
- | |||||
| 41 | 18814 | Switch, Light (Replaces: C3680305) |
|
$ 39.44 | |||||
| 42 | C3684301 | Mullion Heater |
|
- | |||||
| 43 | M0275558 | Sealer Ft. A / K |
|
- | |||||
| 44 | D3981202 | Frame-breaker |
|
- | |||||
| 45 | B5743601 | Cover-switch |
|
- | |||||
| 46 | A3081001 | Insulation |
|
- | |||||
| 47 | D7156101 | Heat Exchanger |
|
- |
