01 - Cover

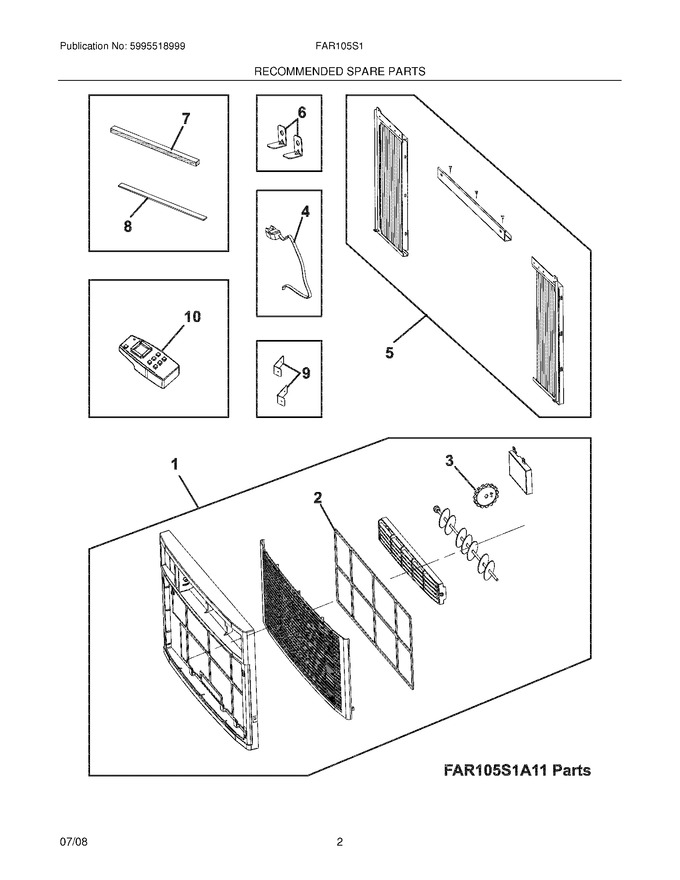

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304459930 | Knob,auger Wheel ,louver |
|
- | |||||
| 5 | 5304467594 | Window Filler Kit,slider Panels |
|
- | |||||
| 6 | 5304459990 | Bracket,window Lock |
|
- | |||||
| 7 | 5304459993 | Seal,strip 1 ,upper |
|
- | |||||
| 8 | 5304459994 | Seal,strip 2 ,lower |
|
- | |||||
| 9 | 5304459983 | Bracket,installation ,locking |
|
- | |||||
| F1 | 5304459923 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304465522 | Remote Control,transmitter |
|
$ 87.74 | |||||
| F2 | 5304459927 | Filter,air |
|
- | |||||
| F4 | 5304463744 | Power Cord,electric ,lcdi |
|
$ 111.98 |
