SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Light Covers


03 - Door Assemblies


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control Assembly


06 - Ice Maker Assembly & Parts


07 - Insulation & Roller Assembly


08 - Light Switches & Drain Funnel


09 - Machine Compartment Assembly


10 - Shelving Assemblies

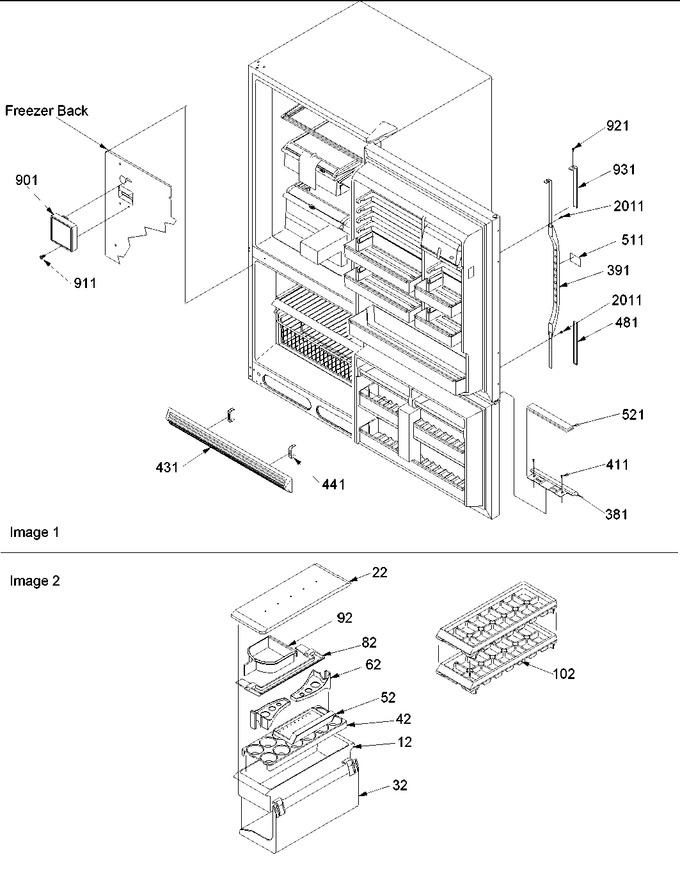

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10423129		Bin-utility		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
42	10436506		Tray, Egg				$ 8.28
52	10310901		Tray, Butter		Appelez-nous	-
381	12285405		Handle, Frz Dr (almond)		Appelez-nous	-
391	12443502		Handle,ref Dr(almond)		Appelez-nous	-
411	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
431	10474805		Grille- L Toe V		Appelez-nous	-
441	10551502		Clip, Toe Grille				$ 5.84
481	12273514		Trim, Bot Mt (almond)		Appelez-nous	-
511	12457801		Nameplate, Handle		Appelez-nous	-
521	12285502		Cap, Hndl Frz L		Appelez-nous	-
921	12248201		Screw, Hndl Cone				$ 5.48
931	12443302		Trim, Upper Handle (almond)		Appelez-nous	-
2011	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.38
NI	M0310730		Plug Button (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
