SELECT A DIAGRAM

01 - Exterior Parts


02 - Interior Parts


03 - Interior Parts


04 - Interior Parts

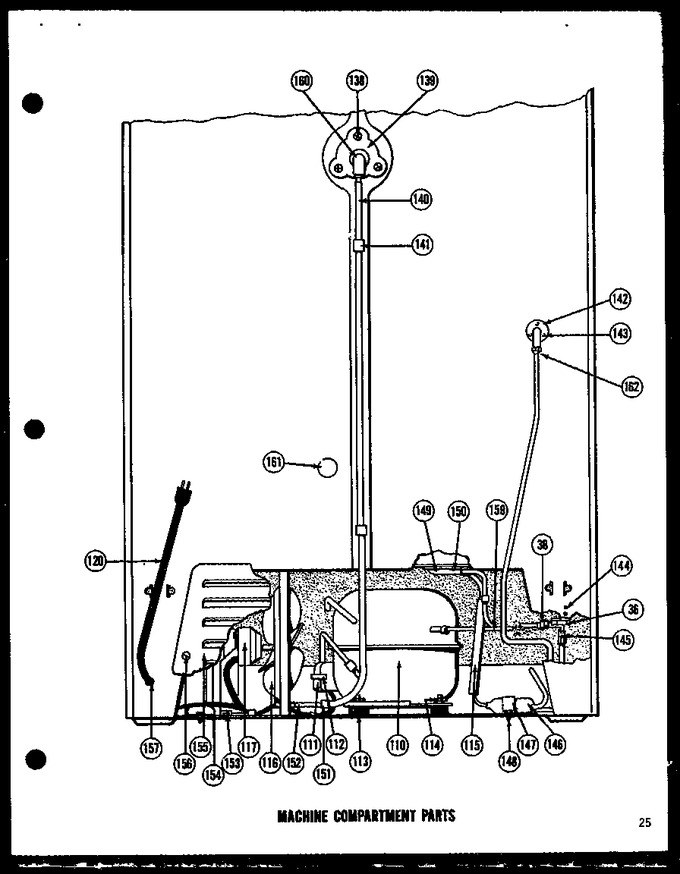

05 - Machine Compartment Parts


06 - Machine Compartment Parts


07 - Page 1


08 - Roller Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
110	D3871601		Kit, Compressor		Appelez-nous	-
110	D3858101		Kit, Compressor		Appelez-nous	-
111	B0551801		Terminal Cover		Appelez-nous	-
112	A3041801		Strap K		Appelez-nous	-
113	A3026101		Grommet K		Appelez-nous	-
114	M0111001		Clip		Appelez-nous	-
115	A0329805		Insulation Tubing, Restrictor		Appelez-nous	-
116	B0487801		Fan Blade		Appelez-nous	-
117	833697		Motor, Fan   (Replaces: B0552004)			Immediately	$ 88.15
120	B0594501		Power Cord		Appelez-nous	-
138	M0211532		Screw		Appelez-nous	-
139	A0391201		Back Up Plate		Appelez-nous	-
140	A0320401		Tubing Ft		Appelez-nous	-
141	M0102201		Clamp		Appelez-nous	-
146	WPB2150504		Drier   (Replaces: B2150501)				$ 136.98
147	M0102315		Clamp		Appelez-nous	-
148	A3013905		Spacer, Drier		Appelez-nous	-
148	M0218037		Screw		Appelez-nous	-
149	A0382903		Cover Plate		Appelez-nous	-
149	A0382901		Cover Plate -g		Appelez-nous	-
149	A0382902		Cover Plate		Appelez-nous	-
150	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 8.25
151	M0103002		Clamp		Appelez-nous	-
152	D3866701		Water Trap		Appelez-nous	-
153	M0102314		Clamp		Appelez-nous	-
154	M0103401		Clamp		Appelez-nous	-
155	C3574401		Back-w		Appelez-nous	-
156	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
157	A0319701		Strain Relief		Appelez-nous	-
159	C3570501		Loop		Appelez-nous	-
160	C3513501		Drain Tube		Appelez-nous	-
161	A0353901		Plug		Appelez-nous	-
NI	C3558601		Xoverload		Appelez-nous	-
NI	D3775201		Water Trap		Appelez-nous	-
NI	A0382801		Gasket		Appelez-nous	-
NI	A3017602		Filler Block		Appelez-nous	-
NI	A3054601		Plug Button		Appelez-nous	-
NI	A637		Screw, Thread Cutting Hex Head		Appelez-nous	-
NI	M0205530		Screw		Appelez-nous	-
NI	A3076701		Bracket K		Appelez-nous	-
NI	A638		Adapter Wire, Capacitor To Rel		Appelez-nous	-
NI	M0214516		Screw		Appelez-nous	-
NI	A636		Capacitor, Starting		Appelez-nous	-
NI	A635		Relay, Starting		Appelez-nous	-
NI	WP486692		Nut K   (Replaces: M0286113)				$ 8.43
NI	A3553301		Relay, 1/3 H.p., Production		Appelez-nous	-
NI	YA0381501		Clip, Waterline		Appelez-nous	-
NI	M0113801		Clip		Appelez-nous	-
NI	M0103001		Clamp, Drain Grommet		Appelez-nous	-
NI	M0274015		Washer K		Appelez-nous	-
NI	Y00000000		See Note Bracket, Start, Capacitor Mounting		Appelez-nous	-
NI	M0282009		Nut				$ 14.07
NI	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
NI	M0211519		Screw		Appelez-nous	-
NI	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
NI	C3524701		Support Block		Appelez-nous	-
NI	C3533801		Overload		Appelez-nous	-
NI	B0527101		Condensate Out		Appelez-nous	-
NI	A3043601		Spring K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
