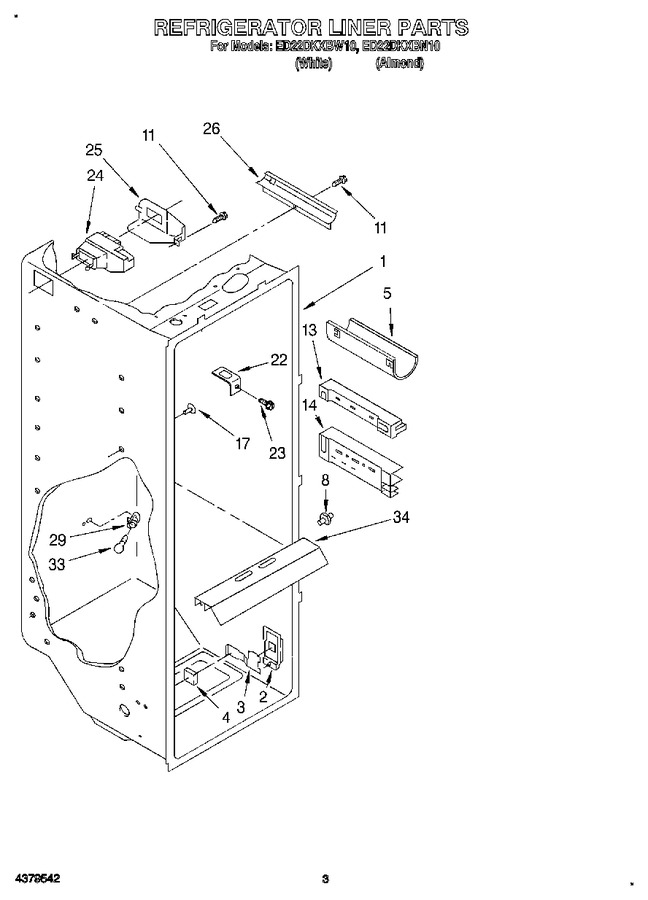

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	1124828		Wine Rack		Appelez-nous	-
8	4388538		Stud   (Replaces: 1110718)			Immediately	$ 31.34
11	W10759522		Screw (2)   (Replaces: 486298)				$ 7.75
13	1114633		Track, Shelf (left Side (2))				$ 23.63
13	1114632		Track, Shelf (right Side (2))				$ 23.36
14	1115265		Track, Shelf (left Side)				$ 25.12
14	1115264		Track, Shelf (right Side)				$ 21.37
17	WP1114631		Support, Stud (24)   (Replaces: 1114631)				$ 10.31
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2161251)			Immediately	$ 99.78
25	2152019		Cover, Air Diffuser				$ 86.03
26	2150331		Cover, Conduit				$ 24.40
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	2169504		Light Lens		Appelez-nous	-
