SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

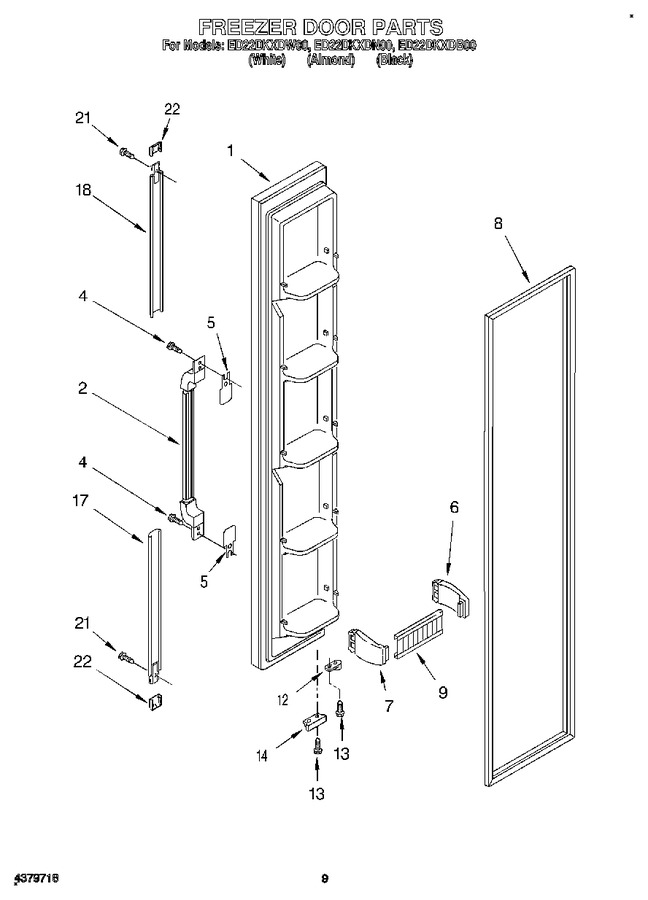

1	2171114		Freezer Door (includes Item No.8) (white)		Appelez-nous	-
1	2171115		Freezer Door (includes Item No.8) (almond)		Appelez-nous	-
1	2180439		Freezer Door (includes Item No.8) (black)		Appelez-nous	-
2	2179368		Handle, Center (black)		Appelez-nous	-
2	2179367		Handle, Center (almond)		Appelez-nous	-
2	2179366		Handle, Center (white)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	WP2195916K		End Cap (5)   (Replaces: 2156002)			Immediately	$ 13.18
7	2156005		End Cap (5)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 323.60
8	2159080		Door Gasket, Magnetic (service) (black)				$ 325.91
9	2180441		Trim, Door Shelf		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
13	WP999367		Screw   (Replaces: 489367)				$ 8.56
14	2155334		Bracket, Door Stop (black)		Appelez-nous	-
14	2155332		Bracket, Door Stop (chrome)		Appelez-nous	-
17	2174282		Extension, Bottom (white)		Appelez-nous	-
17	2174284		Extension, Bottom (black)		Appelez-nous	-
17	2174283		Extension, Bottom (almond)		Appelez-nous	-
18	2174278		Extension, Top (black)		Appelez-nous	-
18	2174277		Extension, Top (almond)		Appelez-nous	-
18	2174276		Extension, Top (white)		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
22	2174008		Cover, Endcap (black)		Appelez-nous	-
22	2174006		Cover, Endcap (white)		Appelez-nous	-
22	2174007		Cover, End Cap (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
