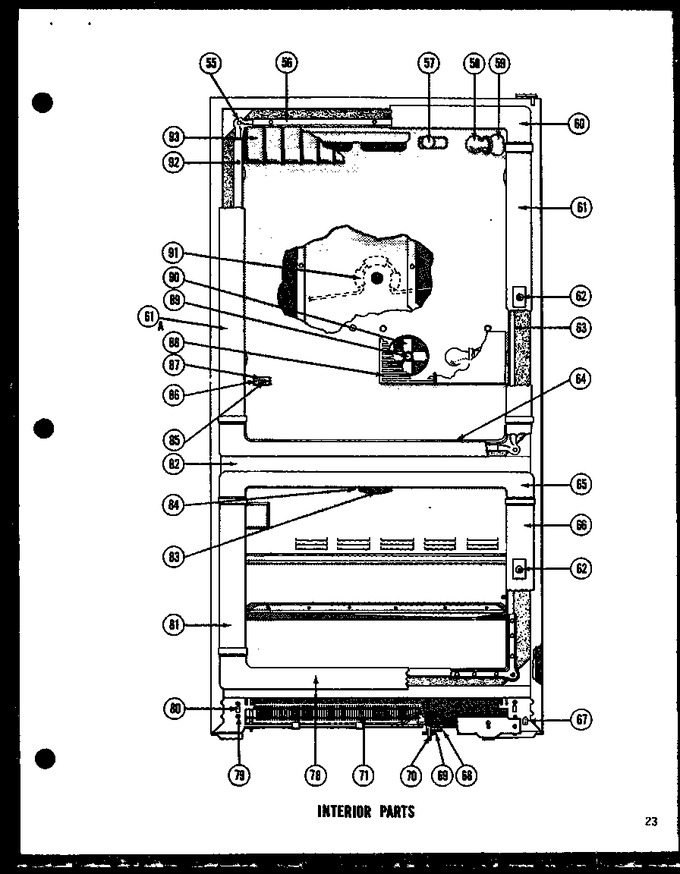

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 55 | B0565201 | Grommet |
|
- | |||||
| 56 | B0530801 | Retainer Angle, Top |
|
- | |||||
| 57 | D3749706 | Knob, Temperature Control |
|
- | |||||
| 58 | W11679940 | Bulb, Light (40 Watt Alum.) (Replaces: A0282801) |
|
Immediately | $ 11.30 | ||||
| 59 | B0542701 | Angle Socket |
|
- | |||||
| 60 | D3710305 | Breaker Frame |
|
- | |||||
| 61 | D3782206 | Breaker Strip |
|
- | |||||
| 61 | D3782208 | Breaker Strip |
|
- | |||||
| 62 | B0552502 | Switch |
|
- | |||||
| 63 | B0530901 | Retainer Angle |
|
- | |||||
| 64 | D3900601 | Retainer |
|
- | |||||
| 65 | D3710405 | Breaker Strip |
|
- | |||||
| 66 | D3763011 | Breaker Strip |
|
- | |||||
| 67 | B5625501 | Lead Wire |
|
- | |||||
| 68 | C3523605 | Seal |
|
- | |||||
| 69 | M0252047 | Sems Fastner |
|
- | |||||
| 70 | C3523506 | Seal, Fan Shroud |
|
- | |||||
| 71 | D3853501 | Condenser Assy Pnt |
|
- | |||||
| 78 | D3710407 | Breaker Strip |
|
- | |||||
| 79 | M0202543 | Screw |
|
- | |||||
| 80 | M0100501 | Clip |
|
- | |||||
| 81 | D3763009 | Breaker Strip |
|
- | |||||
| 82 | C3612301 | Center Mullion |
|
- | |||||
| 82 | C3612303 | Center Mullion |
|
- | |||||
| 82 | C3612305 | Center Mullion |
|
- | |||||
| 83 | C3526901 | Grille Weldment |
|
- | |||||
| 84 | C3565701 | Fan Motor, Fz |
|
- | |||||
| 85 | A3116201 | Switch |
|
- | |||||
| 86 | M0215004 | Screw |
|
- | |||||
| 87 | C3612001 | Escutcheon |
|
- | |||||
| 88 | D3893801 | Light Lens |
|
- | |||||
| 89 | B0561401 | Motor |
|
- | |||||
| 90 | B0561701 | Fan Blade |
|
- | |||||
| 91 | C3573101 | Heater Wire |
|
- | |||||
| 92 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 93 | D3894002 | Light Shield |
|
- | |||||
| NI | C3572301 | Heater Mullion K |
|
- | |||||
| NI | M0113004 | Clip |
|
- | |||||
| NI | A0318001 | Light Bulb |
|
- | |||||
| NI | A3049401 | Spacer, Light Shield |
|
- | |||||
| NI | B0542701 | Angle Socket |
|
- | |||||
| NI | C3540301 | Light Housing |
|
- | |||||
| NI | M0110501 | Clip K |
|
- | |||||
| NI | M0217516 | Screw |
|
- | |||||
| NI | A3053601 | Bracket, Mounting |
|
- | |||||
| NI | D3914401 | Heater Assy |
|
- | |||||
| NI | B0530601 | Fan Blade |
|
- | |||||
| NI | M0201501 | Screw |
|
- | |||||
| NI | M0288008 | Nut, Speed |
|
- | |||||
| NI | M0202642 | Screw |
|
- | |||||
| NI | M0240019 | Screw, Sheet Metal, Motor Asse |
|
- |
