SELECT A DIAGRAM

01 - Exterior Parts


02 - Interior Parts


03 - Interior Parts


04 - Interior Parts


05 - Machine Compartment Parts


06 - Machine Compartment Parts


07 - Page 1


08 - Roller Assy

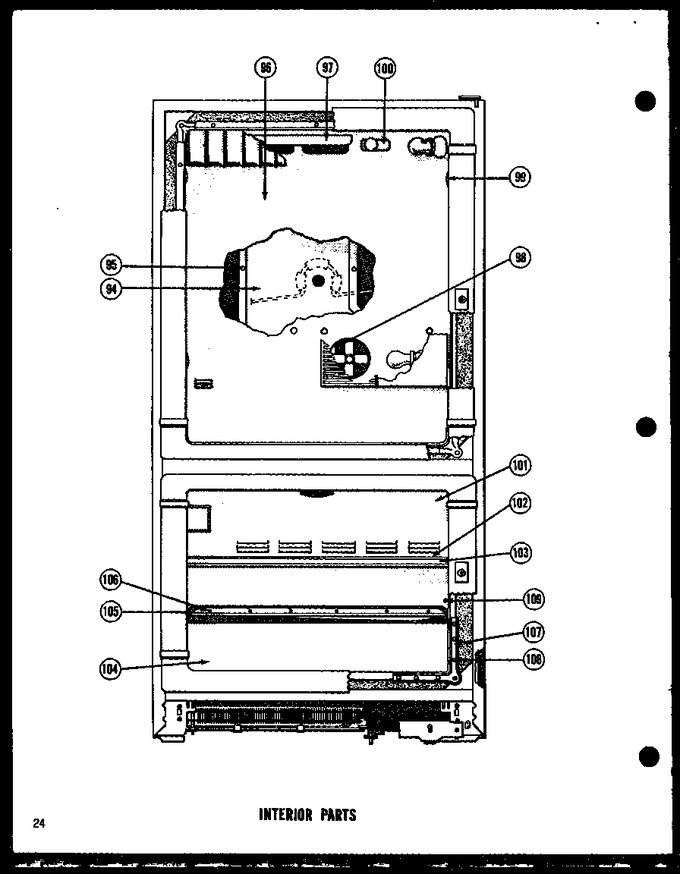

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
94	A0058301		Liner And Tubing Assembly		Appelez-nous	-
95	B0533101		Tap Strip		Appelez-nous	-
95	A0392201		Grommet, Nylon, Shelf Mtg.		Appelez-nous	-
95	M0218035		Screw		Appelez-nous	-
96	D3994201		Ref Liner Assembly		Appelez-nous	-
97	B0567301		Air Baffle		Appelez-nous	-
98	B0521701		Heater		Appelez-nous	-
99	A3065901		Plug		Appelez-nous	-
100	B0569201		Control		Appelez-nous	-
101	C3524501		Liner Back, Fz		Appelez-nous	-
102	D3895707		X$x Shelf Plate		Appelez-nous	-
103	B0560001		Trim, Shelf		Appelez-nous	-
104	C3536503		Liner Back, Fz		Appelez-nous	-
105	D3789705		Drip Tray		Appelez-nous	-
106	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 14.72
107	C3523802		Liner Gusset		Appelez-nous	-
108	M0250531		Screw		Appelez-nous	-
109	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 14.72
NI	M0103501		Clamp		Appelez-nous	-
NI	D3892701		Wiring Harness, Fz		Appelez-nous	-
NI	M0285501		Nut		Appelez-nous	-
NI	M0207746		Screw, Machine		Appelez-nous	-
NI	M0274009		Washer, Sealing		Appelez-nous	-
NI	M0211530		Screw		Appelez-nous	-
NI	WPW10068250		Screw   (Replaces: M0202530)				$ 4.27
NI	M0256821		Sems Fastner		Appelez-nous	-
NI	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 14.72
NI	B0556906		Thermostat		Appelez-nous	-
NI	M0287105		Nut		Appelez-nous	-
NI	A0288701		Grommet		Appelez-nous	-
NI	M0211118		Screw, Sm		Appelez-nous	-
NI	M0281204		Nut A		Appelez-nous	-
NI	D3892201		Wiring Harness		Appelez-nous	-
NI	A0396501		Mounting Strip		Appelez-nous	-
NI	A0382601		Clamp		Appelez-nous	-
NI	C3570701		Heat Exchanger		Appelez-nous	-
NI	C3513601		Drip Tray		Appelez-nous	-
NI	A3013202		Tap Strip		Appelez-nous	-
NI	B0528901		Tap Strip		Appelez-nous	-
NI	YA0381501		Clip, Waterline		Appelez-nous	-
NI	A0374201		Grommet		Appelez-nous	-
NI	A0303701		Nut, Acorn-hinge Plate Mtg.		Appelez-nous	-
NI	M0274006		Washer, Fiber (.188 Id/.500 Od		Appelez-nous	-
NI	C3582701		Heater		Appelez-nous	-
NI	A0329803		Insul Tubing 1=12``		Appelez-nous	-
NI	A0329801		Insul Tubing 1=12``		Appelez-nous	-
NI	M0103003		Clamp		Appelez-nous	-
NI	A0340403		Tubing, Plastic		Appelez-nous	-
NI	A4065501		Spacer K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
