02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Air Flow


07 - Refrigerator Door


08 - Freezer Door, Lit Optional


09 - Unit


10 - Control

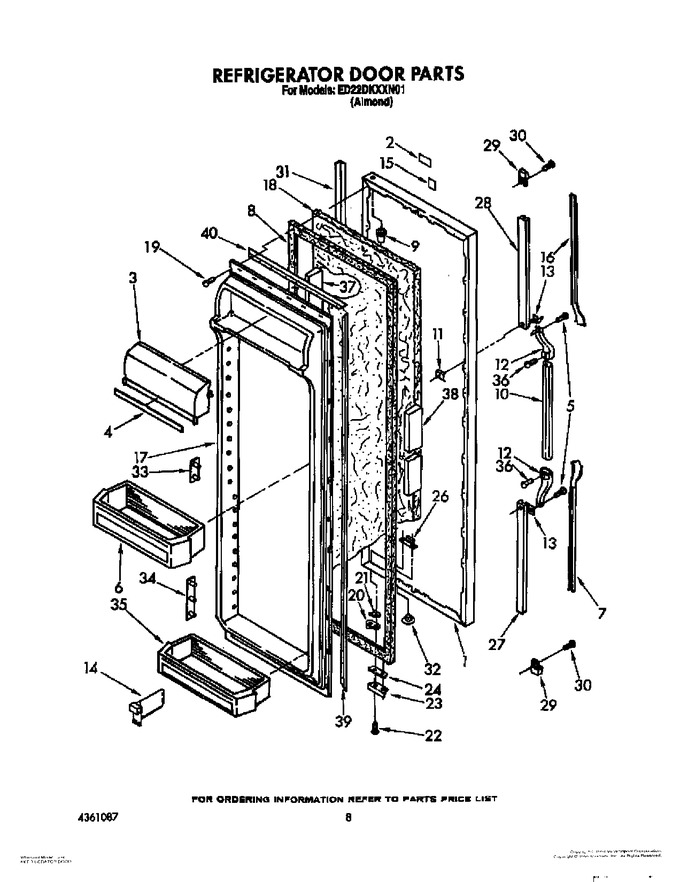

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1115276		Refrigerator Door (almond (also Order Item 18))		Appelez-nous	-
2	1111555		Nameplate		Appelez-nous	-
3	2148702		Door, Compartment		Appelez-nous	-
4	1110717		Trim, Compartment Door		Appelez-nous	-
5	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
6	1121334		Shelf Bin (2)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 2148270)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1118417		Handle, Center		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	1119359		End Cap, Center Handle		Appelez-nous	-
13	935075		Shim		Appelez-nous	-
14	2152336		Divider, Bin		Appelez-nous	-
15	991259		Tape Strip		Appelez-nous	-
16	1119369		Insert, Handle (almond)		Appelez-nous	-
17	1129278		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 7.86
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
20	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
22	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
23	1115906		Bracket, Door Stop		Appelez-nous	-
24	988421		Shim		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
27	1119360		Retainer, Insert (bottom)		Appelez-nous	-
28	1119366		Retainer, Insert		Appelez-nous	-
29	2156220		End Cap (2)		Appelez-nous	-
30	489075		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
31	1119061		Trim, Door		Appelez-nous	-
32	534927		Hole Plug (2)		Appelez-nous	-
33	1118048		Pin Plate (6)		Appelez-nous	-
34	1116986		Pin Plate (8)				$ 12.10
35	1121335		Shelf Bin (2)		Appelez-nous	-
36	489022		Screw, 6-20 X 3/8 (4)		Appelez-nous	-
37	1115379		Door Dike, Hinge Side		Appelez-nous	-
38	1119055		Door Dike, Handle Side		Appelez-nous	-
39	1117766		Gasket Retainer, Side (2)				$ 36.55
40	4210445		Woodgrain Handle Insert		Appelez-nous	-
40	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
40	4210353		Timeless Black Decor Panel		Appelez-nous	-
40	4210377		Black Handle Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
