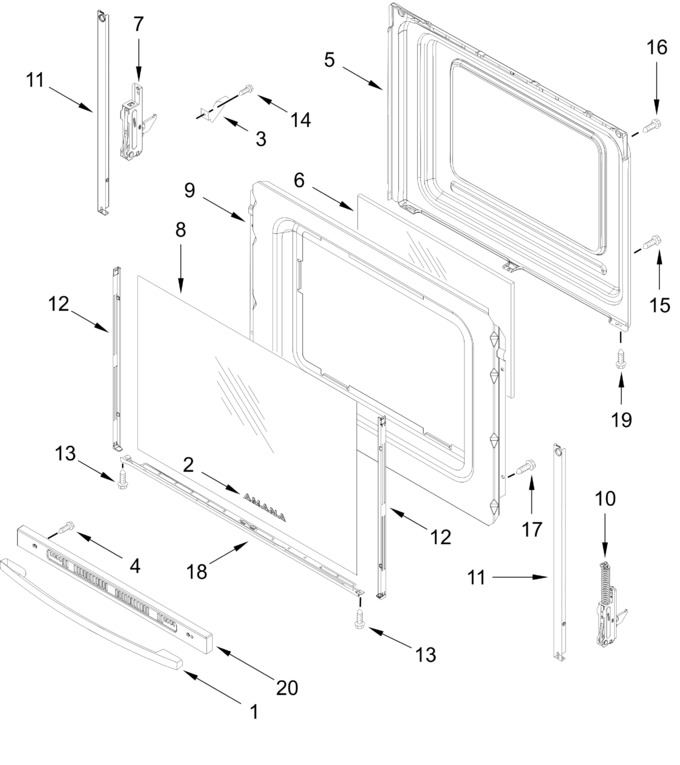

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10323589		Handle (black)   (Replaces: W10323589)			Immediately	$ 238.78
2	W11788675		Badge (black)   (Replaces: W10846751)				$ 31.10
3	W10137382		Clip, Panel			Immediately	$ 48.42
4	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
5	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
6	W11399628		Glass, Inner   (Replaces: W11367326)				$ 171.68
7	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
8	W11702168		Outer Glass (black)   (Replaces: W11687921)				$ 185.87
9	W11685635		Retainer, Insulation   (Replaces: 9761501)				$ 188.29
10	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 52.34
11	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
12	W11817181		Trim, Door Side (black, Left)   (Replaces: W11787888)				$ 60.97
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
17	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
18	W11569689		Trim, Bottom Door (black)   (Replaces: W11444043)			Immediately	$ 60.08
19	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
20	WPW10310922		Trim, Top Vent (black)   (Replaces: W10310922)			Immediately	$ 175.37
	W11817180		Trim, Door Side (black, Right)   (Replaces: W11788027)				$ 60.97
