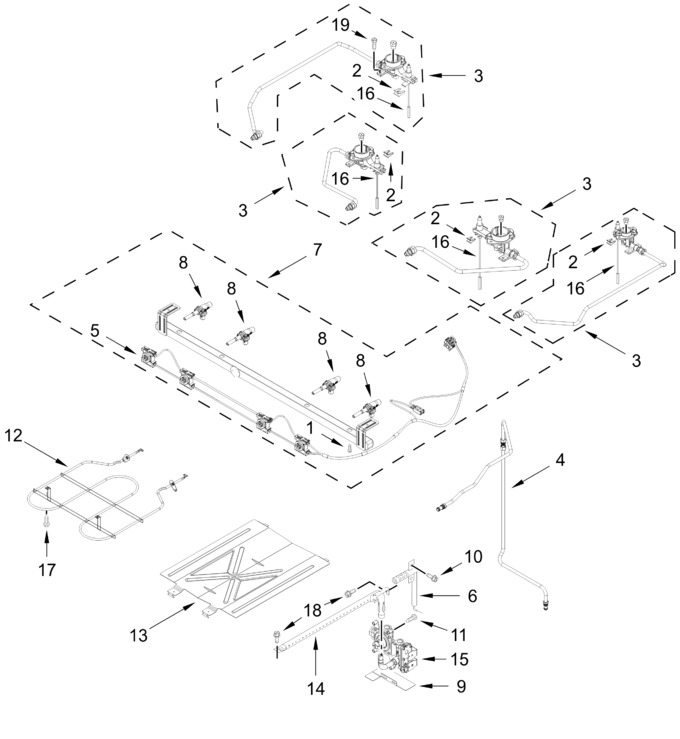

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
3	W11770968		Orifice Assembly   (Replaces: W11300875)		Appelez-nous	-
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 131.31
5	W11776764		Harness, Igniter (includes Switches)   (Replaces: W11641502)		Appelez-nous	-
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 87.74
7	W11776760		Manifold Assembly   (Replaces: W11439857)		Appelez-nous	-
8	W11728580		Valve, Single   (Replaces: W11279839)			Immediately	$ 94.28
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)			Immediately	$ 393.66
16	W11453940		Electrode   (Replaces: W11428831)				$ 64.46
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	3196265		Screw		Appelez-nous	-
19	3196172		Screw			Immediately	$ 13.47
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11728578		Valve, Single   (Replaces: W11279837)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11776755		Kit, Lp Conversion   (Replaces: W11370711)		Appelez-nous	-
	W11747656		Orifice Holder Assembly (18k)   (Replaces: W11300884)				$ 76.34
	W11747653		Orifice Holder Assembly (5k)   (Replaces: W11300872)			Immediately	$ 76.88
	W11747658		Orifice Holder Assembly (10k)   (Replaces: W11300868)		Appelez-nous	-
	WPW10182767		Tie, Wire   (Replaces: W11402210)				$ 7.30
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11728579		Valve, Single   (Replaces: W11279838)		Appelez-nous	-
	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	W11453920		Electrode   (Replaces: W11428858)				$ 64.35
	ARI5AD74B3C8D449725567FBC40A122921E		(right Front, Right Rear)		Appelez-nous	-
	ARI5A21FEE31EB202DDA189D0EC8CA36187		(left Front, Left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
