01 - Cover Sheet

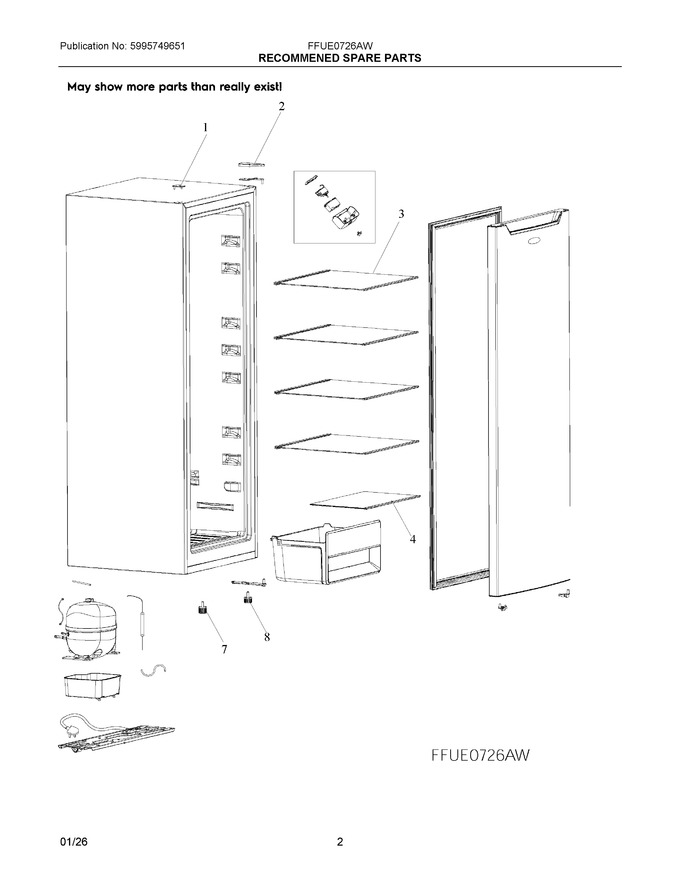

02 - Recommened Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304538749 | Screw Cover, Upper Hinge |
|
- | |||||
| 2 | 5304538750 | Cover, Upper Hinge |
|
- | |||||
| 3 | 5304538753 | Shelf Assembly, Upper Freezer |
|
- | |||||
| 4 | 5304538756 | Shelf Assembly, Crisper Cover, Lower |
|
- | |||||
| 7 | 5304518535 | Foot, Cabinet, White |
|
$ 70.23 | |||||
| 8 | 5304512833 | Foot, Adjustment |
|
- |
