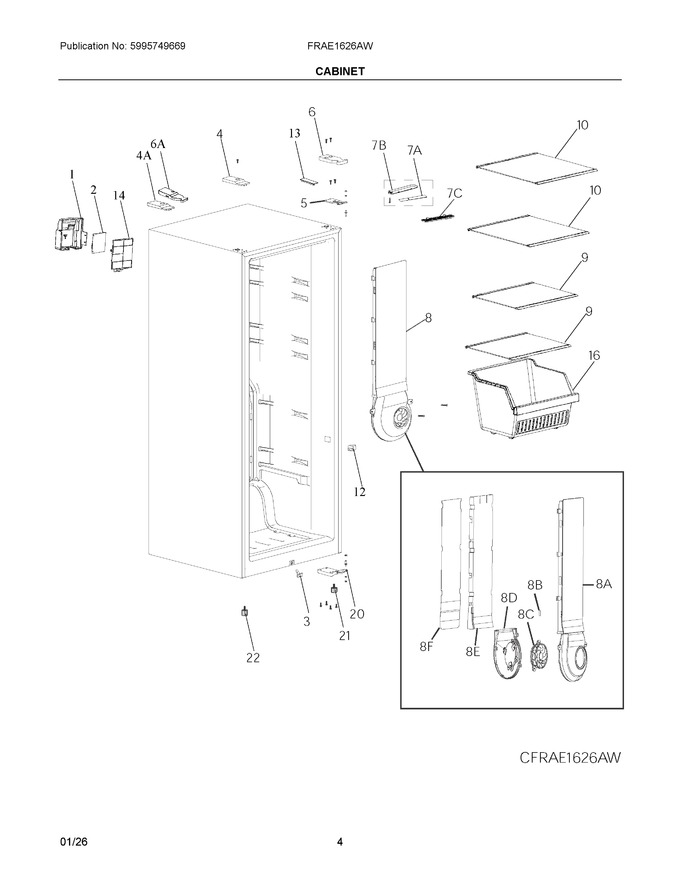

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056033097		Front Cover, Pcb, Plastic, Black		Appelez-nous	-
2	4056023205		Configured Electronic, Pcb, Vmu1113yb				$ 172.41
3	5304521909		Light Assembly, Indicator, Power On				$ 31.62
4	5304521877		Screw Cover, Hinge Hole, Upper, Right				$ 40.96
5	5304521526		Hinge, Upper				$ 84.44
6	4056030150		Hinge Cover, Upper, Right		Appelez-nous	-
8	4056038294		Duct Air Assembly, Upper Freezer		Appelez-nous	-
9	4056030291		Glass Shelf, Lower				$ 65.30
10	4056030168		Glass, Shelf, Upper				$ 75.40
12	5304524331		Switch, Door			Immediately	$ 65.28
13	4056038328		Main Electronic Board		Appelez-nous	-
14	4056033105		Cover Box, Pcb, Plastic, Black		Appelez-nous	-
16	4056030309		Lower Basket, Drawer		Appelez-nous	-
20	5304521544		Hinge, Lower				$ 94.55
21	5304518500		Foot, Cabinet, White, Adjustable   (Replaces: 5304518536)			Immediately	$ 37.58
22	5304518535		Foot, Cabinet, White				$ 70.23
4A	4056030143		Screw Cover, Upper Hinge, Door, Left		Appelez-nous	-
6A	5304521527		Cover Hinge, Upper, Left				$ 52.13
7A	5304521556		Base, Lamp			Immediately	$ 51.34
7B	5304521557		Board, Led			Immediately	$ 168.97
7C	5304521555		Cover, Lamp				$ 45.55
8A	5304529922		Cover, Air Tower		Appelez-nous	-
8B	5304521553		Sensor Temperature, Defrost, Air Duct				$ 75.71
8C	5304537968		Fan Assembly, Evaporator, Motor				$ 192.01
8D	5304521550		Cover, Fan				$ 101.17
8E	5304521551		Insulation		Appelez-nous	-
8F	5304521549		Cover		Appelez-nous	-
