SELECT A DIAGRAM

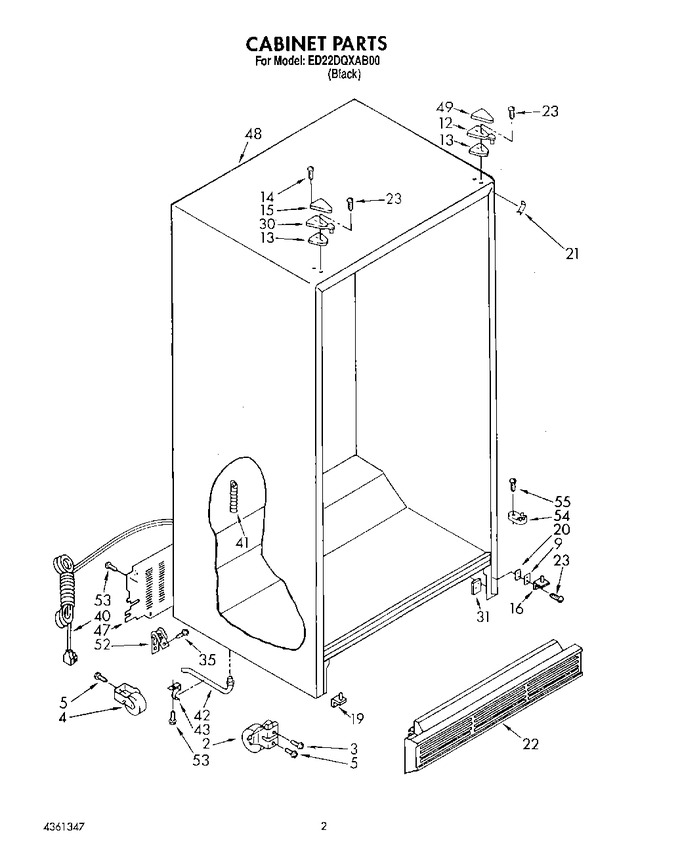

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Air Flow


07 - Motor And Ice Container


08 - Refrigerator Door


09 - Freezer Door


10 - Dispenser Front


11 - Unit


12 - Icemaker, Lit/optional


13 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2152011		Front Roller (2)		Appelez-nous	-
3	489393		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	488454		Screw, 1/4-28 X 1/2 (6)		Appelez-nous	-
9	836196		Shim		Appelez-nous	-
12	1123514		Hinge Top (r.h.)		Appelez-nous	-
13	1123515		Shim, Hinge Top				$ 6.58
14	489284		Screw		Appelez-nous	-
15	2151694		Hinge Cover		Appelez-nous	-
16	2151619		Hinge Bottom (r.h.)		Appelez-nous	-
19	2151620		Hinge Bottom (l.h.)		Appelez-nous	-
20	987179		Spacer, Hinge		Appelez-nous	-
21	1127272		Filler, Wrapper		Appelez-nous	-
22	1129061		Grille		Appelez-nous	-
23	489327		Screw		Appelez-nous	-
30	1123510		Hinge, Top (l.h.)		Appelez-nous	-
31	2147310		Tap Plate (2)		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
40	937360		Cord, Service		Appelez-nous	-
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
47	2161316		Cover, Unit		Appelez-nous	-
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	2155938		Hinge Cover				$ 15.55
52	549193		Clamp-service Cord				$ 13.39
53	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
54	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.43
55	WP489399		Screw   (Replaces: 489375)				$ 6.95

    View Diagram in Separate Window       Print Part List
