SELECT A DIAGRAM

Base And Pedestal Unit Parts


Case, Gearing And Planetary Unit Parts


Color Variation Parts

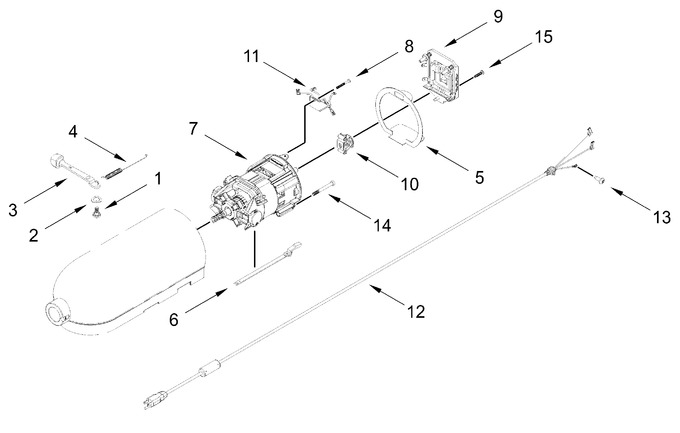

Motor And Control Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11702848		Screw   (Replaces: W11611890)		Appelez-nous	-
2	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
3	WP9709276		Lever, Speed Control Assembly (black)   (Replaces: 9709276)			Immediately	$ 5.32
4	WP3183680		Spring, Control Plate   (Replaces: 3183680)				$ 4.79
5	2407751		Seal, End		Appelez-nous	-
6	W11557271		Link, Speed And Cam Assembly   (Replaces: W11435668)			Immediately	$ 8.47
7	W11680505		Motor Assembly   (Replaces: W11610691)		Appelez-nous	-
8	W11084238		Screw   (Replaces: W10068260)		Appelez-nous	-
9	WPW10119326		Control Plate Assembly   (Replaces: W10119326)			Immediately	$ 17.43
10	WPW10330804		Governor Assembly   (Replaces: W10330804)			Immediately	$ 16.39
11	W11204851		Phase Control, 230 Volt   (Replaces: W10915375)		Appelez-nous	-
12	W11341534		Cord, Power (black)		Appelez-nous	-
13	W10914506		Screw   (Replaces: W10351843)				$ 4.59
14	W11678787		Screw, Motor Mounting   (Replaces: W11573199)		Appelez-nous	-
15	WP3179559		Screw   (Replaces: 3179559)				$ 71.54

    View Diagram in Separate Window       Print Part List
