Base And Pedestal Unit
Case, Gearing And Planetary Unit
Color Variation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

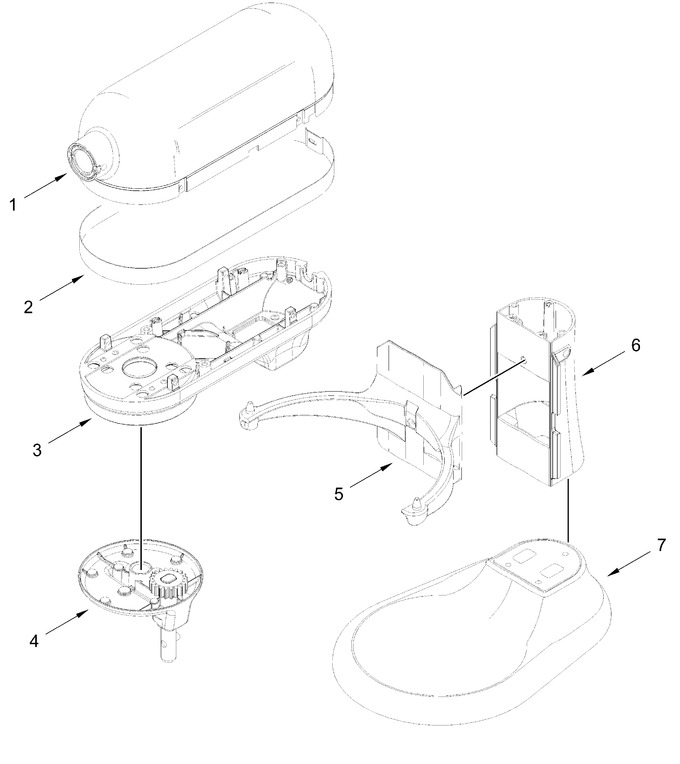

| 1 | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 2 | W11649200 | Trim Band (bright Aluminum) (Replaces: W11420352) |
|
- | |||||
| 3 | W11520143 | Lower Gearcase (contour Silver) |
|
- | |||||
| 4 | W11513269 | Planetary (contour Silver) |
|
$ 75.33 | |||||
| 5 | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 6 | W10328003 | Column And Pins (contour Silver) |
|
- | |||||
| 7 | W10328017 | Base And Foot Assembly (contour Silver) |
|
- | |||||
| 9705348 | Base And Foot Assembly (empire Red) |
|
- | ||||||
| 9705324 | Column And Pins (empire Red) |
|
- | ||||||
| 9705360 | Bowl Support And Pins (empire Red) |
|
- | ||||||
| W11513270 | Planetary (empire Red) |
|
$ 77.95 | ||||||
| W11520142 | Lower Gearcase (empire Red) |
|
- | ||||||
| 9705300 | Motor Housing (empire Red) |
|
$ 88.20 |
