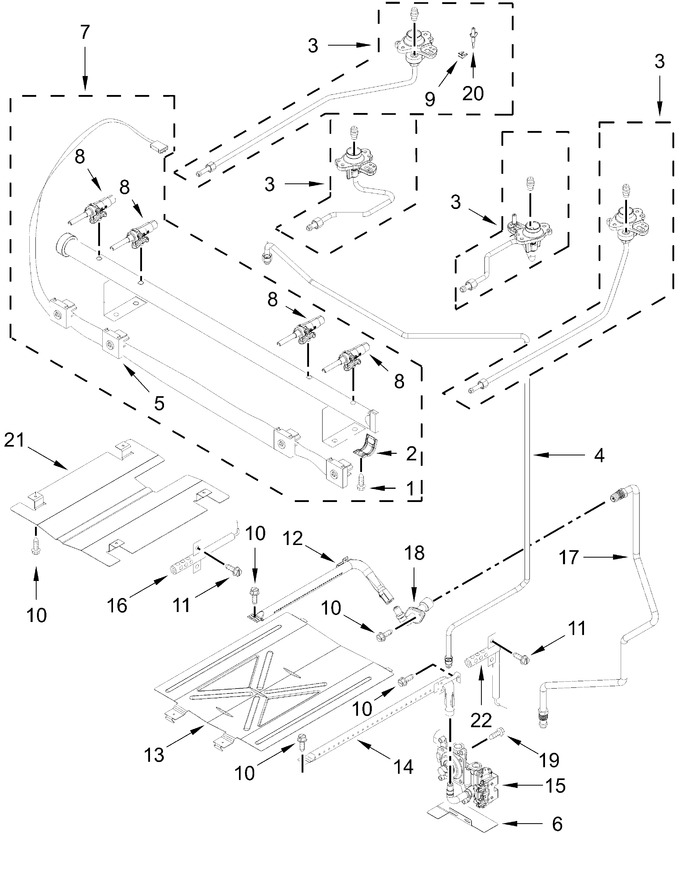

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577792		Screw, Valve		Appelez-nous	-
2	W10949105		Bracket, Saddle Valve				$ 22.75
3	W11459253		Orifice Holder Assembly		Appelez-nous	-
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	W11701337		Harness, Switch   (Replaces: W11537750)		Appelez-nous	-
6	W10224921		Bracket, Aegis		Appelez-nous	-
7	W11510001		Manifold Assembly		Appelez-nous	-
8	W11759109		Valve, Gas   (Replaces: W11509685)		Appelez-nous	-
9	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
10	3196265		Screw		Appelez-nous	-
11	W11684507		Screw   (Replaces: 3196385)				$ 14.27
12	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W11449506		Regulator   (Replaces: W11370883)				$ 201.69
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W11435700		Fitting, Broiler				$ 89.09
19	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
20	W11453940		Electrode   (Replaces: W11428831)				$ 64.46
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
	W11509687		Valve,gas				$ 99.67
	W10758273		Orifice, Lp Broil   (Replaces: W10465080)				$ 8.53
	ARI130620F5738F97FA53E648D69A4CE80B		(left Front, Left Rear)		Appelez-nous	-
	W11459254		Orifice Holder Assembly		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	W11459255		Orifice Holder Assembly		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11459256		Orifice Holder Assembly		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11509686		Valve, Gas		Appelez-nous	-
	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
	W11126051		Lp Bake And Broil Kit   (Replaces: W10566537)				$ 129.04
	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11569688		Lp Conversion Kit   (Replaces: W11489400)				$ 73.83
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI5AD74B3C8D449725567FBC40A122921E		(right Front, Right Rear)		Appelez-nous	-
	W11453920		Electrode   (Replaces: W11428858)				$ 64.35
