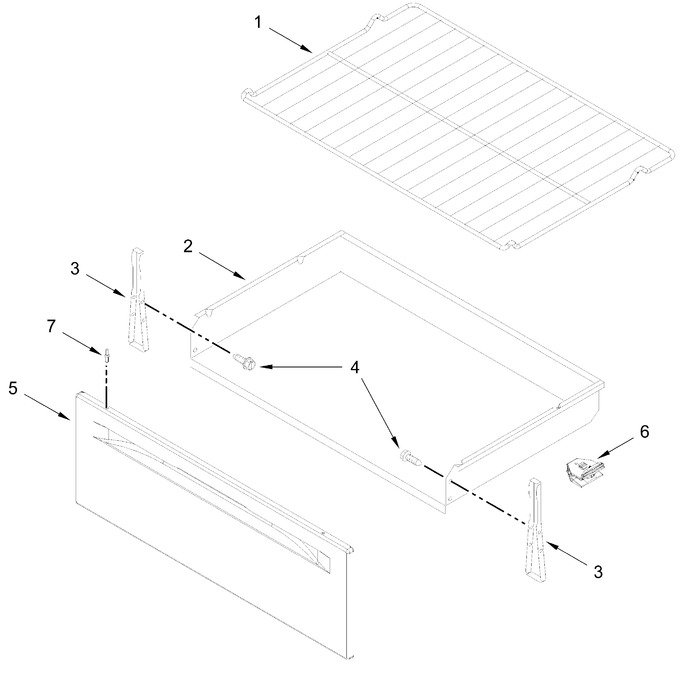

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 46.84 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 3 | W10462911 | Bracket, Mounting |
|
- | |||||
| 4 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 5 | W11230490 | Panel, Drawer Front (black) (Replaces: W11123976) |
|
$ 211.59 | |||||
| 6 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 19.47 | ||||
| 7 | WP3196813 | Rivet (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| W11230486 | Panel, Drawer Front (white) (Replaces: W11123977) |
|
$ 211.49 | ||||||
| WP3196814 | Rivet (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 |
