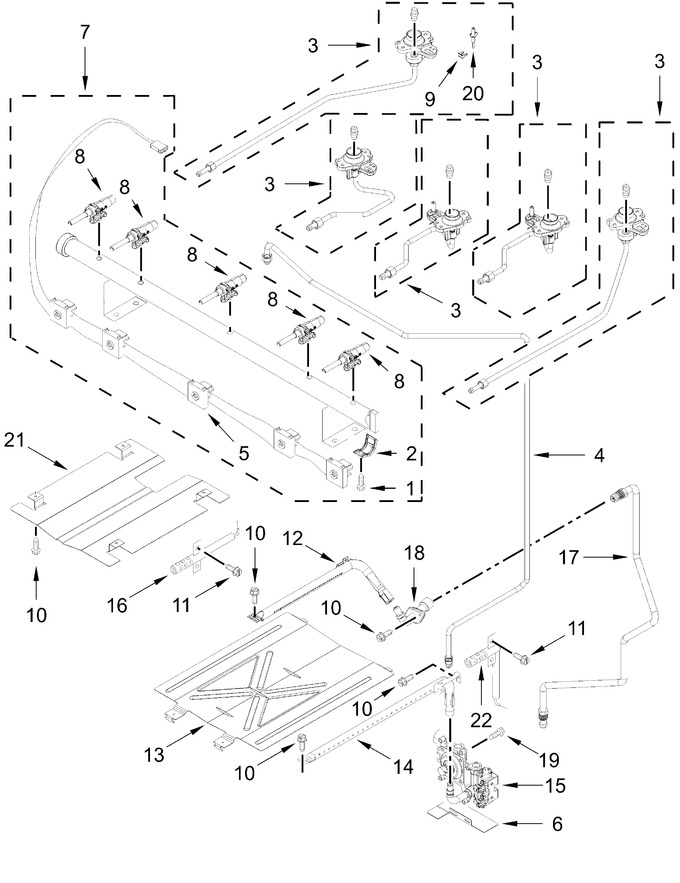

| 1 | W11577792 | Screw, Valve |
|
- | |||||
| 2 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 3 | W11562501 | Orifice Holder Assembly (15k) (Replaces: W11459257) |
|
$ 104.50 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 159.35 | |||||
| 5 | W11701336 | Harness, Igniter (includes Switches) (Replaces: W11537754) |
|
- | |||||
| 6 | W10224921 | Bracket, Aegis |
|
- | |||||
| 7 | W11510000 | Manifold Assembly |
|
- | |||||
| 8 | W11759109 | Valve, Gas (Replaces: W11509685) |
|
- | |||||
| 9 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 10 | 3196265 | Screw |
|
- | |||||
| 11 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 239.36 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | W11449506 | Regulator (Replaces: W11370883) |
|
$ 201.69 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 85.81 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 194.54 | |||||
| 18 | W11435700 | Fitting, Broiler |
|
$ 89.09 | |||||
| 19 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 20 | W11453940 | Electrode (Replaces: W11428831) |
|
$ 64.46 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 22 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 56.90 | ||||
| ARIB5EC423DC5AD79ADD9DCFB76CCAA7A53 | (left Front, Left Rear, Center) |
|
- | ||||||
| W10758273 | Orifice, Lp Broil (Replaces: W10465080) |
|
$ 8.53 | ||||||
| W11509686 | Valve, Gas |
|
- | ||||||
| ARIE2F766571ECE19AAAC256E04B35496EC | (left Front, Right Front, Center) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| W11557818 | Orifice Holder Assembly (8k) (Replaces: W11459261) |
|
$ 108.20 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11557817 | Orifice Holder Assembly (5k) (Replaces: W11459259) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11557816 | Orifice Holder Assembly (15k) (Replaces: W11459260) |
|
$ 107.93 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11557815 | Orifice Holder Assembly (9.5k) (Replaces: W11459258) |
|
- | ||||||
| WPW10400495 | Orifice, Lp Bake (Replaces: W10400495) |
|
$ 94.32 | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11126051 | Kit, Lp Conversion (bake, Broil) (Replaces: W10566537) |
|
$ 129.04 | ||||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI5AD74B3C8D449725567FBC40A122921E | (right Front, Right Rear) |
|
- | ||||||
| W11453920 | Electrode (Replaces: W11428858) |
|
$ 64.35 | ||||||
| W11560165 | Kit, Lp Conversion - Orifice Set Of 5 (Replaces: W11489399) |
|
$ 35.03 | ||||||
| W11509687 | Valve,gas |
|
$ 99.67 |
