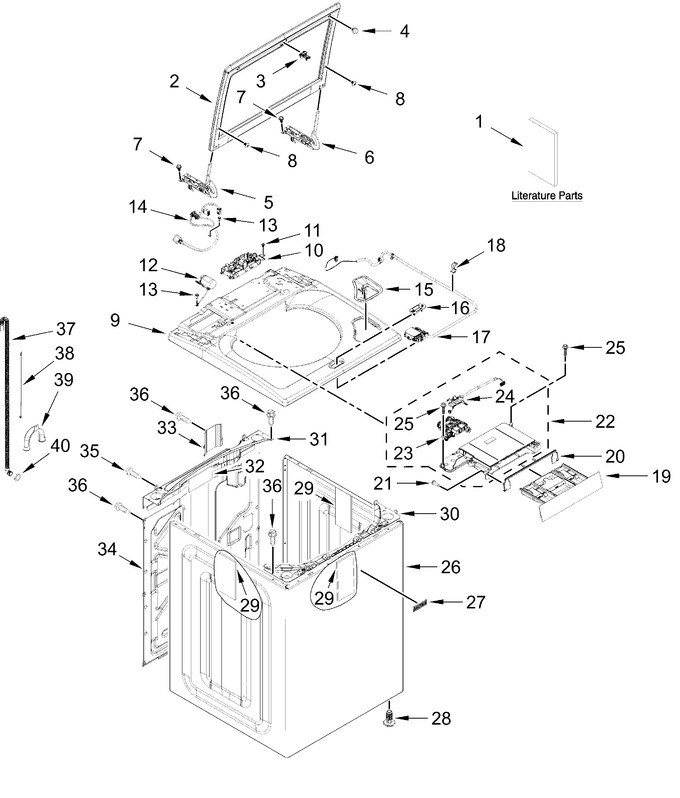

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11470212		Lid Assembly (grey)   (Replaces: W11416841)			Immediately	$ 339.85
3	W11721071		Assembly, Strike   (Replaces: W11533683)			Immediately	$ 7.77
4	W11398707		Bumper, Lid   (Replaces: W10631074)			Immediately	$ 22.19
5	W11551369		Hinge, Lid (left)   (Replaces: W11128305)			Immediately	$ 106.21
6	W11551376		Hinge, Lid (right)   (Replaces: W11128306)			Immediately	$ 109.68
7	WP489128		Screw   (Replaces: W10142728)				$ 10.88
8	W11679612		Screw   (Replaces: W11183686)				$ 14.23
9	W11423769		Top (white)   (Replaces: W11126896)				$ 366.84
10	W11772743		Machine And Motor Control Unit Assembly   (Replaces: W11749386)				$ 369.11
11	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
12	W11638178		Assembly, Line Filter   (Replaces: W11296733)				$ 82.59
13	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
14	W11551294		Power Cord   (Replaces: W11112935)			Immediately	$ 39.53
15	W11175757		Bleach Dispenser Bezel (white)				$ 28.80
16	W11545554		Lid Lock Bezel (white)   (Replaces: W11215078)			Immediately	$ 22.30
17	W11700916		Lid Lock Assembly   (Replaces: W11543566)			Immediately	$ 76.34
18	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.32
19	W10861667		Dispenser Drawer Assembly (white)   (Replaces: W10794820)			Immediately	$ 100.17
20	W10601845		Dispenser Bezel Assembly (white)   (Replaces: W10601841)				$ 40.56
21	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
22	W11624934		Assembly, Dispenser Housing And Inlet Valve   (Replaces: W11570270)				$ 293.82
23	W11595805		Valve, Water Inlet   (Replaces: W11528767)			Immediately	$ 167.31
24	W11524529		Harness, Valve				$ 65.96
25	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.00
26	W10676680		Cabinet (white)				$ 387.49
27	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 40.34
28	W11213957		Foot Assembly, Leveling   (Replaces: W11179235)			Immediately	$ 13.56
29	W11197416		Absorber, Impact   (Replaces: W10688364)			Immediately	$ 22.27
30	W11381327		Channel, Top Front			Immediately	$ 74.76
31	W11712680		Channel, Top Rear   (Replaces: W10512626)				$ 98.93
32	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 7.98
33	W10676061		Cover, Harness				$ 35.02
34	W11486091		Panel, Rear   (Replaces: W11417173)			Immediately	$ 312.11
35	W11568617		Screw   (Replaces: W10567155)				$ 14.02
36	W11685943		Screw   (Replaces: W10660565)				$ 14.26
37	W11244231		Hose, Outer Drain Assembly   (Replaces: W11203364)			Immediately	$ 32.07
38	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.90
39	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 79.53
40	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
	W11218060		Dispenser Bezel Assembly (grey)				$ 27.72
	W11646252		Owners Manual		Appelez-nous	-
	W11646246		Quick Start Guide		Appelez-nous	-
	W11720297		Energy Guide		Appelez-nous	-
	W11423768		Top (chrome Shadow)   (Replaces: W11126897)				$ 364.61
	W11175760		Bleach Dispenser Bezel (grey)			Immediately	$ 28.83
	W10676681		Cabinet (chrome Shadow)				$ 464.13
	W11559688		Lid Lock Bezel (grey)   (Replaces: W11215091)			Immediately	$ 28.85
	W11803233		Dispenser Drawer Assembly (grey)   (Replaces: W11178180)			Immediately	$ 54.29

    View Diagram in Separate Window       Print Part List
