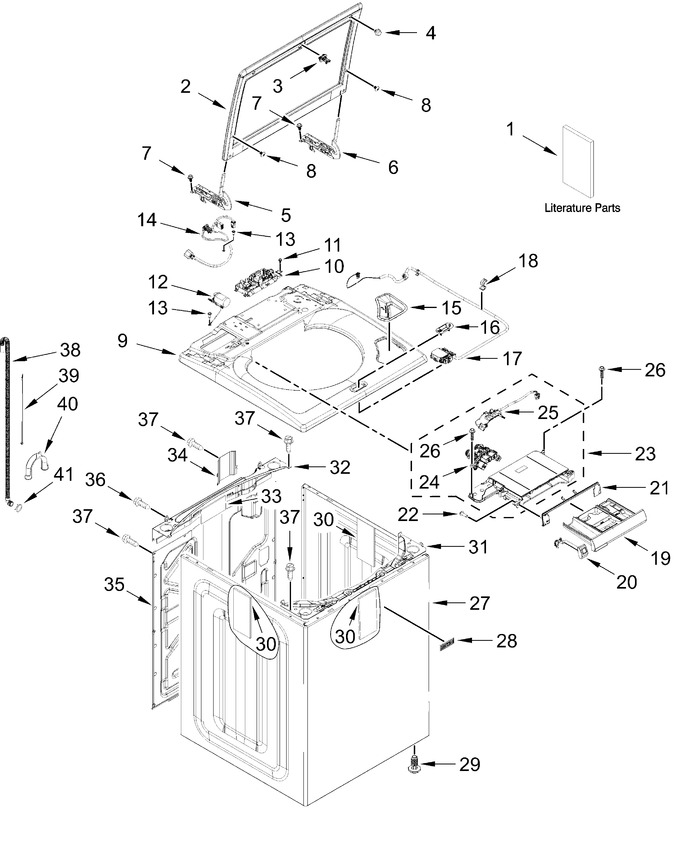

Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11470212 | Lid Assembly (grey) (Replaces: W11416841) |
|
Immediately | $ 356.83 | ||||
| 3 | W11721071 | Assembly, Strike (Replaces: W11533683) |
|
Immediately | $ 8.16 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | W11551369 | Hinge, Lid (left) (Replaces: W11128305) |
|
Immediately | $ 114.96 | ||||
| 6 | W11551376 | Hinge, Lid (right) (Replaces: W11128306) |
|
Immediately | $ 121.92 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 14.99 | |||||
| 9 | W11423769 | Top (white) (Replaces: W11126896) |
|
$ 385.19 | |||||
| 10 | W11771771 | Appliance Control Unit (acu) (Replaces: W11675187) |
|
$ 401.12 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | W11638178 | Assembly, Line Filter (Replaces: W11296733) |
|
$ 86.72 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 41.51 | ||||
| 15 | W11175757 | Bleach Dispenser Bezel (white) |
|
$ 30.24 | |||||
| 16 | W11545554 | Lid Lock Bezel (white) (Replaces: W11215078) |
|
Immediately | $ 22.30 | ||||
| 17 | W11700916 | Lid Lock Assembly (Replaces: W11543566) |
|
Immediately | $ 76.34 | ||||
| 18 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 19 | W11573771 | Dispenser Drawer Assembly (white) (Replaces: W11042242) |
|
Immediately | $ 120.84 | ||||
| 20 | W11174419 | Faucet Switch Assembly (white) (Replaces: W11082600) |
|
$ 82.17 | |||||
| 21 | W11375988 | Dispenser Bezel Assembly (white) |
|
- | |||||
| 22 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 23 | W11614513 | Dispenser Housing And Inlet Valve Assembly (Replaces: W11570268) |
|
Immediately | $ 199.38 | ||||
| 24 | W11614515 | Valve, Water Inlet (Replaces: W11528768) |
|
Immediately | $ 177.26 | ||||
| 25 | W11524850 | Harness, Valve |
|
$ 69.26 | |||||
| 26 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 27 | W10677265 | Cabinet (white) |
|
$ 511.04 | |||||
| 28 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 29 | WPW10687506 | Leveling Foot Assembly (Replaces: W10687506) |
|
Immediately | $ 26.07 | ||||
| 30 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 31 | W11381327 | Channel, Top Front |
|
Immediately | $ 78.50 | ||||
| 32 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 33 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 34 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 35 | W11417171 | Panel, Rear |
|
$ 277.67 | |||||
| 36 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 37 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 38 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 39 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 40 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 41 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| W10677266 | Cabinet (chrome Shadow) |
|
$ 517.50 | ||||||
| W11646252 | Owners Manual |
|
- | ||||||
| W11646246 | Quick Start Guide |
|
- | ||||||
| W11720299 | Energy Guide |
|
- | ||||||
| W11423768 | Top (chrome Shadow) (Replaces: W11126897) |
|
$ 382.84 | ||||||
| W11175760 | Bleach Dispenser Bezel (grey) |
|
Immediately | $ 30.27 | |||||
| W11559688 | Lid Lock Bezel (grey) (Replaces: W11215091) |
|
Immediately | $ 30.29 | |||||
| W11611449 | Dispenser Drawer Assembly (grey) (Replaces: W11239953) |
|
$ 82.25 | ||||||
| W11662334 | Faucet Switch Assembly (grey) (Replaces: W11246872) |
|
$ 64.50 | ||||||
| W11375989 | Dispenser Bezel Assembly (grey) |
|
$ 30.20 |
