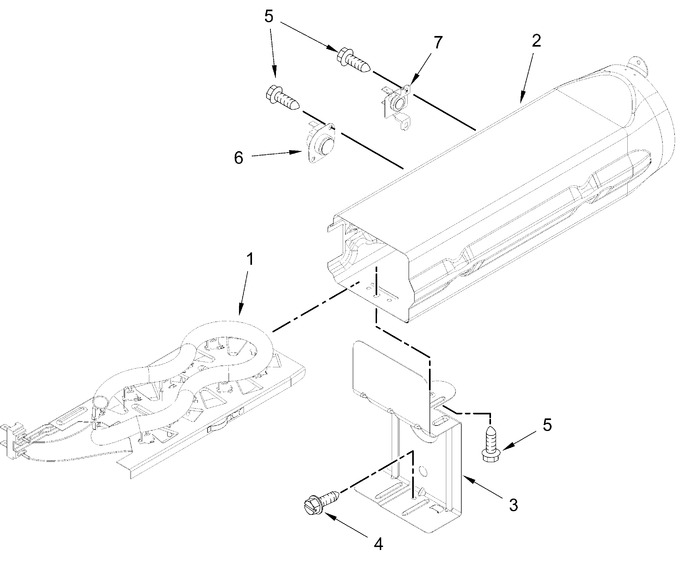

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3387747 | Element, Heater 5400w (Replaces: W11344457) |
|
Immediately | $ 84.64 | ||||
| 2 | W10802681 | Assembly, Weld Heater Box (Replaces: W10891205) |
|
Immediately | $ 129.67 | ||||
| 3 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 4 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP8557403 | Thermostat, Hi Limit (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 7 | 280148 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 54.61 |
